Tanzania - 2 Units XCMG GR215 Motor Grader

Product Category : XCMG Motor Grader

Country : Tanzania, Mtwara Port

On July 21th, 2022, We exported two units of motor graders to Tanzania, Mtwara Port.

XCMG GR215 Motor Grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. XCMG GR215 Motor Grader is the necessary construction machinery for national defense construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

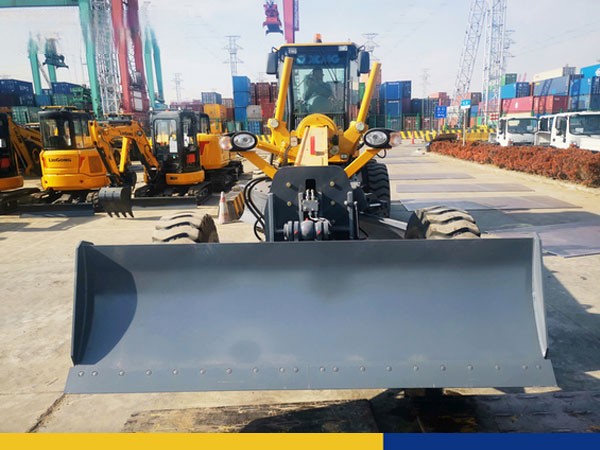

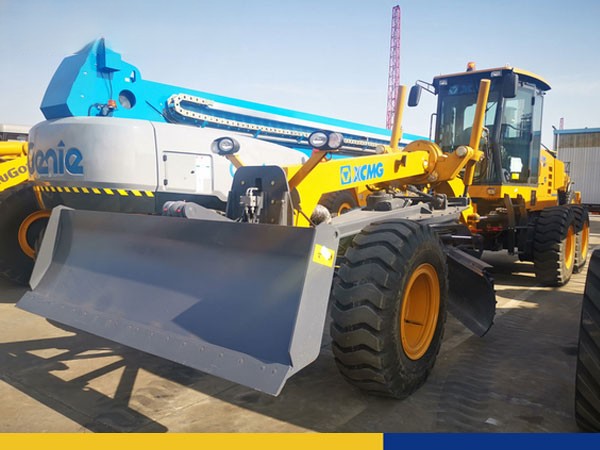

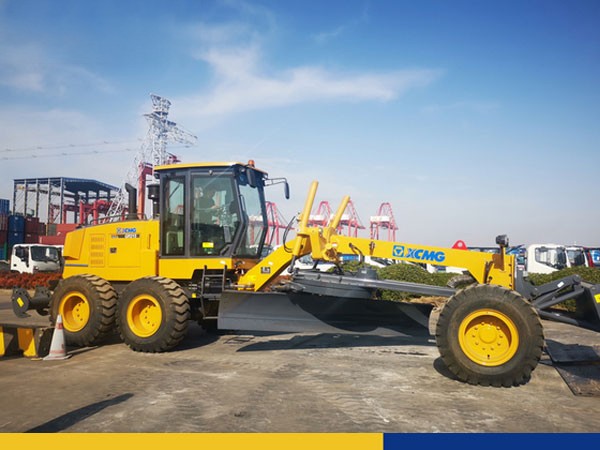

tanzania1-3(2)tanzania1-1(2)tanzania1-2(2)

  • 1. Famous brand engine, ZF technology gearbox and Meritor drive axle make the dynamic matching of transmission system more reasonable and reliable.
  • 2. Take measures such as vibration elimination, sound absorption and sound insulation to reduce the internal and external noise of the cab.
  • 3. The double-circuit hydraulic brake system is applied to realize more reliable and stable braking.
  • 4. The steering load-sensing system is applied and the main hydraulic units adopt international products to guarantee the system stability and reliability.
  • 5. The blade body adopts adjustable large slide slot and double slideway mechanism and the blade plates are made of wear-resistant high strength materials.

Basic specification
Engine model 6CTAA8.3/6CTA8.3
Rated power/speed 153kW/2200rpm  160kW/2200rpm
Dimension(LxWxH) 8970×2625×3470mm
Operating weight(Standard) 16500kg
Performance specification
Travelling speed ,forward 5,8,11,19,23,38 km/h
Travelling speed ,reverse 5,11,23 km/h
Tractive force(f=0.75) 90KN
Max. gradeability 30%
Tire inflation pressure 260 kPa
Working hydraulic pressure 16 MPa
Transmission pressure 1.3~1.8MPa
Operating specification
Max. steering angle of front wheels ±50°
Max. lean angle of front wheels ±17°
Max. oscillation angle of front axle ±15°
Max. oscillation angle of balance box 15
Frame articulation angle ±27°
Min. turning radius using articulation 7.3m
Biade
Maximum lift above ground 450mm
Maximum depth of cutting 500mm
Maximum blade position angle 90°
Blade cutting angle 28°-70°
Circle reversing rotation 360°
Moldboard width X height 4270×610mm
