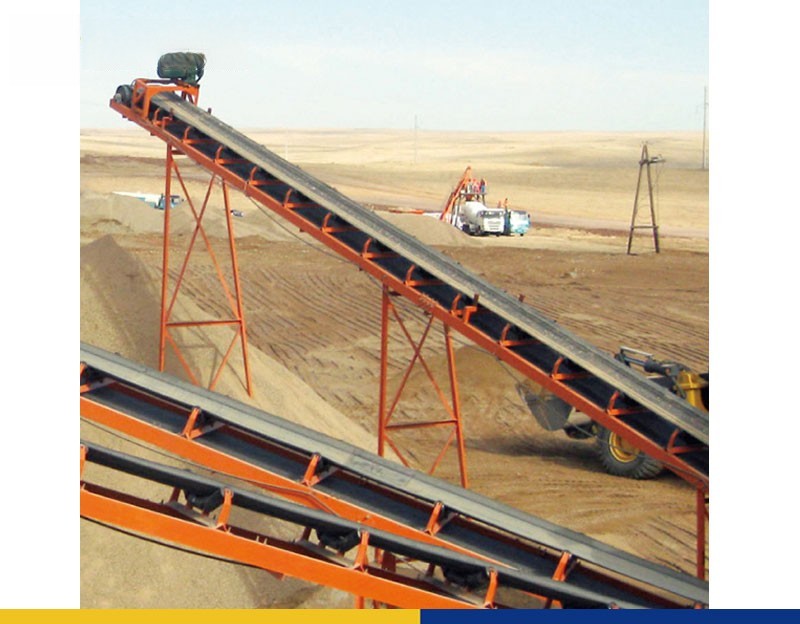

Belt Conveyor
Conveyor
The belt conveyor series produced by our company has the advantages of large conveying capacity, simple structure, convenient maintenance, and standardized parts. According to the requirements of the conveying process, it can be conveyed by a single unit, or composed of multiple units or combined with other conveying equipment. The belt conveyor can be used in the ambient temperature range of -20°C to +40°C, and the temperature of the conveying material is below 50°C.
● Chassis Model: ZSW Vibrating Feeder
● Brand Name: China Brand
● Belt width(mm): 400mm - 1600mm
● Belt Length(m): 1m - 40m
● Capacity(t/h): 30 - 1850
| 胶带宽度 Belt width（mm） | 输送长度 Belt Length（m） | 功率 Power（kw） | 输送速度 Belt Speed（m/s） | 输送量 Capacity（t/h） |
| 400 | ≤12 | 1.5-2.2 | 1.3-1.6 | 30-60 |
| 12-20 | 2.2-4 | |||
| ≤12 | 1.5-3 | |||
| 500 | ≤12 | 1.5-3 | 1.3-1.6 | 60-80 |
| 12-20 | 2.2-5.5 | |||
| 20-30 | 3-7.5 | |||
| 650 | ≤12 | 1.5-4 | 1.3-1.6 | 80-120 |
| 12-20 | 2.2-7.5 | |||
| 20-30 | 4-11 | |||
| 800 | ≤6 | 1.5-3 | 1.3-1.6 | 120-200 |
| 6-15 | 2.2-7.5 | |||
| 15-30 | 4-15 | |||
| 1000 | ≤10 | 2.2-5.5 | 1.3-2.0 | 200-320 |
| 12-20 | 4-15 | |||
| 20-40 | 7.5-37 | |||
| 1200 | ≤10 | 3-7.5 | 1.3-2.0 | 320-480 |
| 12-20 | 5.5-22 | |||
| 20-40 | 7.5-45 | |||
| 1400 | ≤10 | 3-11 | 1.3-2.0 | 588-1427 |
| 12-20 | 5.5-22 | |||
| 20-40 | 7.5-55 | |||
| 1600 | ≤10 | 3-15 | 1.3-2.0 | 700-1850 |
| 12-20 | 11-30 | |||
| 20-40 | 15-75 |
Feeder/Screen/Conveyor Models
