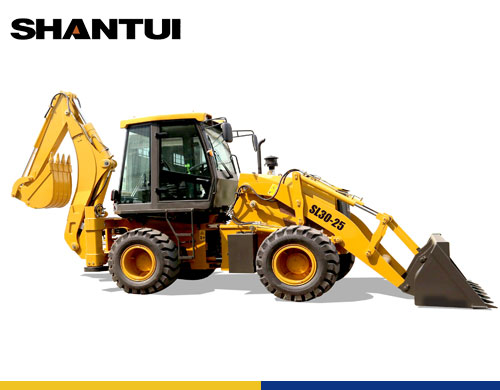

2.5Ton 1.0/0.3m³ Backhoe Loader WZ30-25
Small Backhoe Loader
Backhoe Loader WZ30-25 equipped With 75kW/2400, this engine conforms to China-II emission regulation.
● Model: WZ30-25 Backhoe Loader
● Brand Name: SHANTUI
● Loading Lifting Capacity: 2500kg
● Operating Weight: 7600KG
● Rated Power: 75kW/2400rpm
● Bucket Capacity: 1.0/0.3m³
● ENGINE POWER: With 75kW/2400 , this engine conforms to China-II emission regulation.
| Product name | WZ30-25 |
| Overall Operating Weight | 7600KG |
| L*W*H | 5910X 2268 X 3760 |
| Wheel base | 2250mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.0m3 |
| Breakout Force | 25KN |
| Loading Lifting Capacity | 2500KG |
| Bucket Dumping Height | 2795mm |
| Bucket Dumping Distance | 1048mm |
| Digging Depth | 52mm |
| Backhoe Capacity | 0.1-0.4 m3 |
| Max. Digging Depth | 4080-4500mm |
| Swing Angle of Excavator Grab | 190o |
| Max. Pulling Force | 39KN |
| Engine | |
| Model | ＹＣ４Ａ１０５Ｚ-Ｔ20 |
| Type | turbocharging four-stroke |
| Cylinder-Inside Diameter*Stroke | 4—105 |
| Rated Power | 75KW/100HP |
| Rated Speed | 2400r/min |
| Min. Fuel Consumption | 235g/kw.h |
| Max.Torque | 310NM |
| Displacement | 4.3L |
| Steering System | |
| Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36 o |
| Min. turning radius | 5018mm |
| Pressure of the system | 12Mpa |
| Axle | |
| Manufacturer | Feicheng Axles |
| Main Transmission Type | single reduction |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Max. Efficiency | 0.844 |
| Inlet Pressure | 0.4Mpa—0.55 Mpa |
| Outlet Pressure | 1.2Mpa—1.5 Mpa |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Oil Pressure of Clutch | 1373Kpa—1569 Kpa |
| Gears | Two Gears Ahead, Two Gears Astern |
| Max.Speed | |
| Tyre | |
| Model | 16/70-20 |
| Pressure of Front wheel | 0.22 Mpa |
| Pressure of Back Wheel | 0.20 Mpa |
| Brake System | |
| Service Brake | air over hydraulic disc on 4 wheels |
| Emergency Brake | manual parking brake |
| Hydraulic System | |
| Digging Power of Excavator Grab | 46KN |
| Digging Power of Dipper | 31KN |
| Bucket Lifting Time | 6.8S |
| Bucket Lowering Time | 2.5S |
| Bucket Discharge Time | 1.2S |
