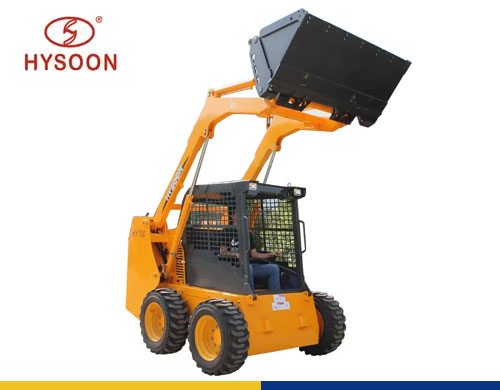

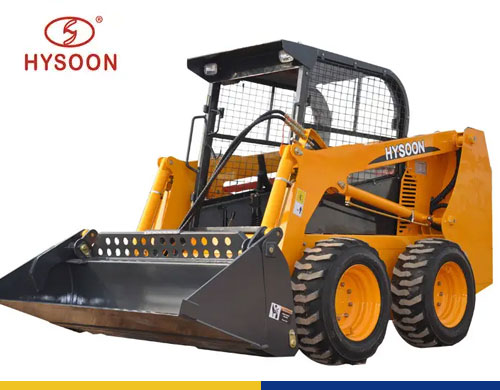

700KG Skid Steer Loader HYSOON HY700
Skidsteer Wheel Loader
A skid loader, skid-steer loader, SSLs or skidsteer is a small, rigid-frame, engine-powered machine with lift arms that can attach to a wide variety of buckets and other labor-saving tools or attachments.
● Model: HY700
● Brand Name: HYSOON
● Loading capacity: 700kg
● Operating Weight: 2860kg
● Rated Power: 45KW (60HP)
● Warranty: 1 Year
Specifications
| Product Model | HOT mini Chinese skid steer loader HY700 |
| Load capacity | 700kg |
| Weight | 2860kg |
| Engine | Diesel Engine |
| Rated Speed | 2500r/min |
| Type of Engine | Four Cylinder,Water-cooling,four stoke |
| Rated Power | 45KW (60HP) |
| Fuel Consumption rate on standard | <=240g/Kw.h |
| Fuel consumption rate on max torque | <=238g/Kw.h |
| Noise | <=117Db (A) |
| Generator Power | 500W |
| Voltage | 12V |
| Storage battery | 105AH |
| Speed | 0-10Km/h |
| Drive mode | Hydrostatic four-wheel drive |
| Tire | 10-16.5 |
| Hydraulic pump flow for running | 110L/min |
| Hydraulic pump flow for working | 65L/min |
| System pressure | 15Mpa |
| Fuel tank capacity | 90L |
| Hydraulic oil tank capacity | 65L |
| Motor | Big torque hydraulic motor |
| Piston double pump | Sauer hydraulic pump |
