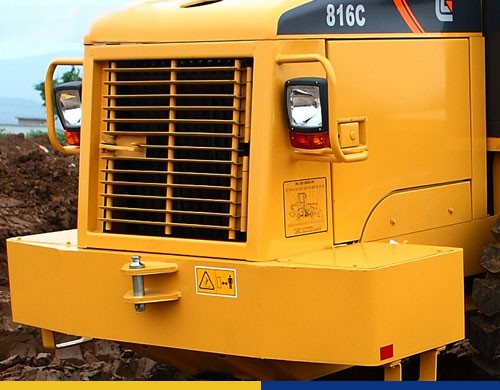

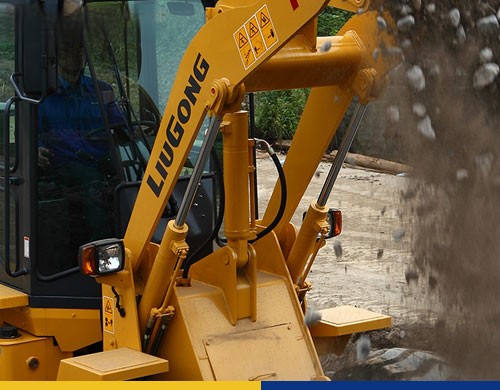

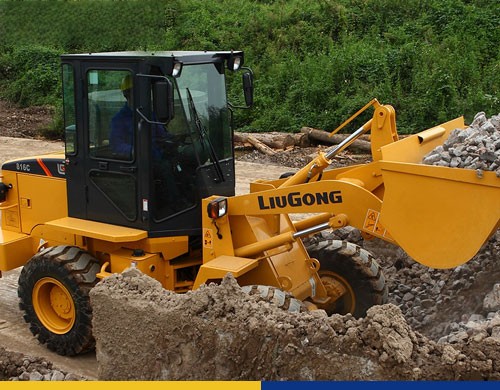

1Ton Wheel Loader LIUGONG CLG816C
Compact Wheel Loader
For maximum return on investment the 835H wheel loader is a versatile machine that’s easy to own, use and maintain.
● Brand Name: LIUGONG
● Engine Model: Yunnei YN38GBZ1
● Net Power: 61 kW (82 hp / 83 ps) @ 2,400 rpm
● Bucket Capacity: 1.0 m³
● Rated Load: 1,000 kg
● Operating Weight: 5470 kg
● Classification: Compact Wheel Loader
The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
Specifications
Base
| Operating Weight | 4,987 kg |
| Bucket Capacity | 1.0 m³ |
| Gross Power | 65 kW (87 hp / 88 ps) @ 2,400 rpm |
| Net Power | 61 kW (82 hp / 83 ps) @ 2,400 rpm |
Performance
| Total Cycle Time | 6.9 s |
| Tipping Load-full Turn | 3,941 kg |
| Bucket Breakout Force | 51.5 kN |
| Dump Clearance, Full Height Discharge | 2,567 mm |
| Dump Reach, Full Height Discharge | 828 mm |
Engine
| Model | Yunnei YN38GBZ1 |
| Emissions | EPA Tier 2 / EU Stage II |
Dimensions
| Length with Bucket Down | 5,700 mm |
| Width over Tires | 1,982 mm |
| Cab Height | 2,865 mm |
