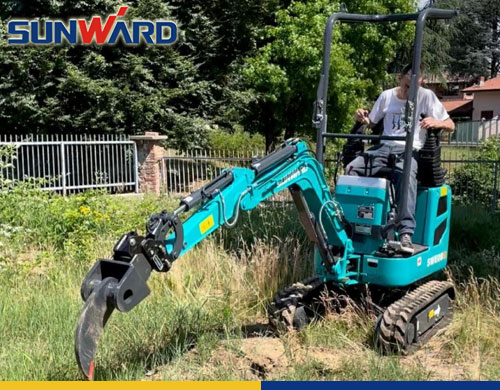

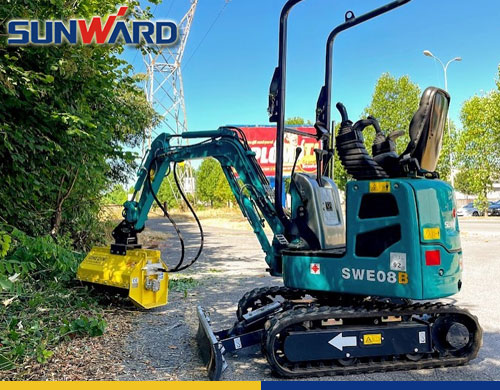

1.0Ton 0.022m³ Excavator Sunward SWE08B
Mini Excavator
● Model: SWE08B Excavator
● Brand Name: Sunward
● Engine Model: Yanmar 2TNV70-PSU
● Rated Power: 7.2/2400kW/rpm
● Bucket Capacity: 0.022m³
● Operating Weight: 1010kg
● Classification: Mini Crawler Excavator
The Sunward SWE 08B is the smallest excavator in our range. This mini excavator is perfect for work in tight areas.
Specifications
| SWE08B Technical Parameters | |||||||||||
| Type of cab | canopy | ||||||||||
| Bucket capacity,std. | m³ | 0.022 | |||||||||
| Bucket width | mm | 320 | |||||||||
| Machine weight | kg | 1010 | |||||||||
| Dimensions | Overall length | mm | 2640 | ||||||||
| Overall height | mm | 2250 | |||||||||
| Overall width | mm | 750 | |||||||||
| Ground clearance | mm | 131 | |||||||||
| Engine | Brand | Yanmar | |||||||||
| Model | 2TNV70-PSU | ||||||||||
| Displacement | L | 0.57 | |||||||||
| Output | kW/rpm | 7.2/2400 | |||||||||
| Working ranges | Max cutting height | mm | 3085 | ||||||||
| Max loading height | mm | 2305 | |||||||||
| Max digging depth | mm | 1825 | |||||||||
| Max digging reach | mm | 3180 | |||||||||
| Boom swing angle（left/right） | ° | 73/53 | |||||||||
| Front swing radius | mm | 1221 | |||||||||
| Tail swing radius | mm | 750 | |||||||||
| Max digging force（Arm） | kN | 5.8 | |||||||||
| Max digging force（Bucket） | kN | 9.4 | |||||||||
| Track | Type | Rubber crawler | |||||||||
| Track Width | mm | 180 | |||||||||
| Undercarrige | Track Length | mm | 1299 | ||||||||
| Length to center of Rollers | mm | 975 | |||||||||
| Lenhth to center of track | mm | 560/820 | |||||||||
| Travelling speed（High/Low） | km/h | 2.9/1.5 | |||||||||
| Gradeability | deg | 30 | |||||||||
| Swing speed | rpm | 8.2 | |||||||||
| Ground pressure | kpa | 24.5 | |||||||||
| Dozer size | Width | mm | 750/1000 | ||||||||
| Height | mm | 190 | |||||||||
| Lifting capacity（Height/Depth） | mm | 225/225 | |||||||||
| Hydraulic pumps | Type | 3 Gear pump | |||||||||
| Displacement | L/min | 3*9.6 | |||||||||
| Hydraulic pressure | Mpa | 2*16 | |||||||||
| Fuel tank capacity | L | 10 | |||||||||
| Hydraulic oil tank capacity | L | 9.5 | |||||||||
