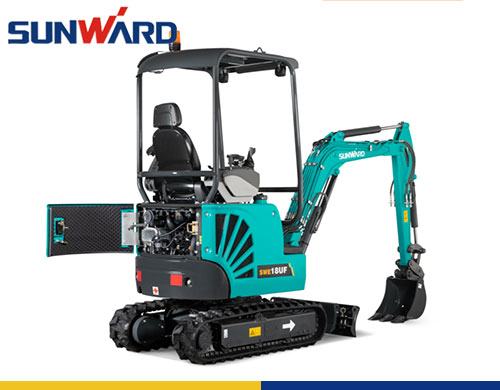

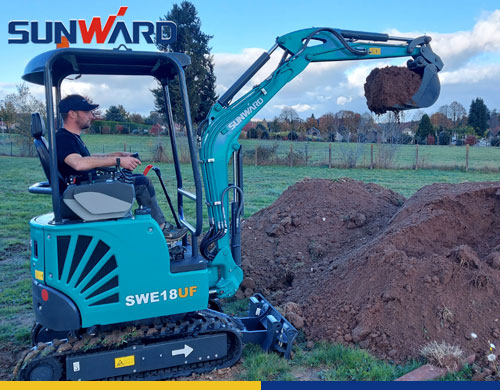

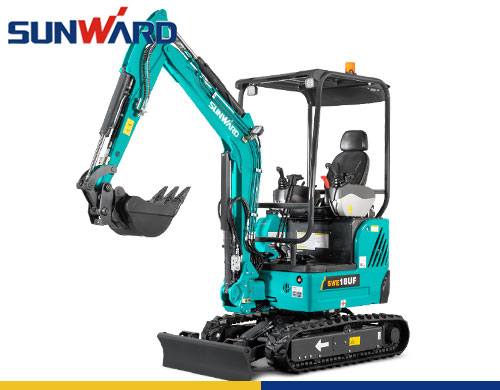

1.8Ton 0.04m³ Excavator Sunward SWE18UF
Mini Excavator
● Model: SWE18UF Excavator
● Brand Name: Sunward
● Engine Model: Yanmar 3TNV80F-SSSU
● Rated Power: 13.4/2200kW/rpm
● Bucket Capacity: 0.04m³
● Operating Weight: 1880kg
● Classification: Mini Crawler Excavator
The Sunward SWE 18UF mini excavator is a 4-pole canopy mini excavator built for small corners and tight working conditions.
Specifications
| SWE18UF Technical Parameters | |||||||||||||
| Type of cab | canopy | ||||||||||||
| Bucket capacity,std. | m³ | 0.04 | |||||||||||
| Bucket width | mm | 380 | |||||||||||
| Machine weight | kg | 1880 | |||||||||||
| Dimensions | Overall length | mm | 3582 | ||||||||||
| Overall height | mm | 2415 | |||||||||||
| Overall width | mm | 990 | |||||||||||
| Ground clearance | mm | 160 | |||||||||||
| Engine | Brand | Yanmar | |||||||||||
| Model | 3TNV80F-SSSU | ||||||||||||
| Displacement | L | 1.267 | |||||||||||
| Output | kW/rpm | 13.4/2200 | |||||||||||
| Working ranges | Max cutting height | mm | 3458 | ||||||||||
| Max loading height | mm | 2431 | |||||||||||
| Max digging depth | mm | 2206 | |||||||||||
| Max vertical wall digging depth | mm | 1590 | |||||||||||
| Max digging reach | mm | 3942 | |||||||||||
| Boom swing angle(left/right) | ° | 71/49 | |||||||||||
| Front swing radius | mm | 1794 | |||||||||||
| Tail swing radius | mm | 680 | |||||||||||
| Max digging force(Arm) | kN | 11.24 | |||||||||||
| Max digging force(Bucket) | kN | 22.7 | |||||||||||
| Track | Type | mm | Rubber crawler | ||||||||||
| Track Width | mm | 230 | |||||||||||
| Track Length | mm | 1538 | |||||||||||
| Undercarrige | Length to center of Rollers | mm | 1210 | ||||||||||
| Lenhth to center of track | mm | 760/1090 | |||||||||||
| Travelling speed(High/Low) | km/h | 3.5/2 | |||||||||||
| Gradeability | ° | 30 | |||||||||||
| Swing speed | rpm | 10 | |||||||||||
| Dozer size | Width | mm | 990/1320 | ||||||||||
| Height | mm | 267 | |||||||||||
| Lifting capacity(Height/Depth) | mm | 216/270 | |||||||||||
| Hydraulic pumps | 2 variable plunger pumps (21L/min) + 1 gear pump (15L/min) + 1 pilot gear pump (5.9L/min) |
||||||||||||
| Fuel tank capacity | L | 24.6 | |||||||||||
| Hydraulic oil tank capacity | L | 18.6 | |||||||||||
