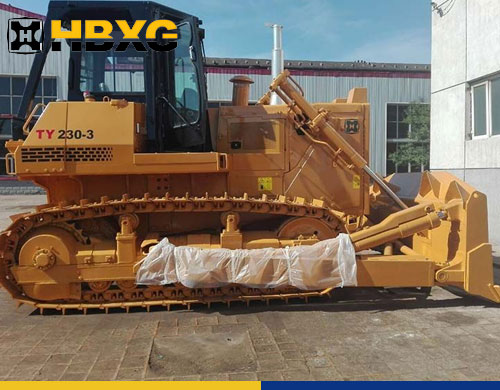

25Ton 7.8m³ Bulldozer HBXG TY230-3
Normal Track Bulldozer
● Model: TY230-3 Bulldozer
● Brand Name: HBXG
● Operating Weight: 24840kg
● Dozing Capacity: 7.8 m³
● Blade Width: 3666mm
● Max.Digging Depth: 540mm
● Classification: Normal Track Bulldozer
TY230-3 bulldozer is semi-rigid suspended, total hydraulic controlled and hydrnamic driving bulldozer, equipped with new model Cummins engine, three-element torque converter, single lever operation planetary gear transmission.
Specifications
| Engine | Cummins NT855-C280S10 |
| Flywheel output | 185KW/230HP |
| Operating weight | 24840kg |
| Ground pressure | 76Kpa |
| Track gauge | 2000mm |
| Gradient | 30°/25° |
| Min. ground clearance | 405mm |
| Dozing capacity | 7.8 m³ |
| Blade width | 3666mm |
| Max. Digging depth | 540mm |
| Overall dimensions | 5733×3666×3380mm |
