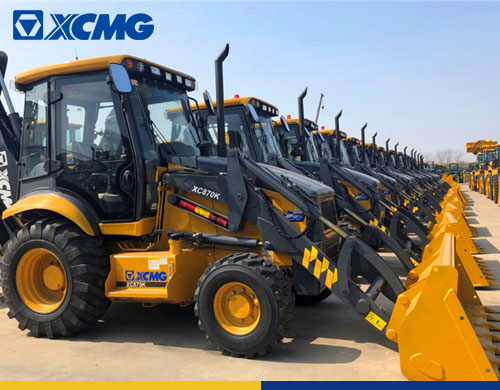

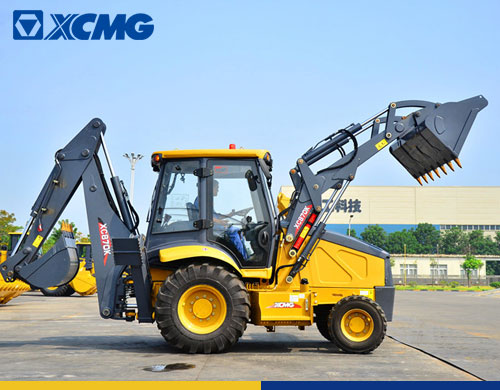

2.5Ton 1m³ Backhoe Loader XC870K
Mini Backhoe Loader
XCMG XC870K backhoe loader is upgraded on the basis of the mature equipment and technical performances of present products, including the upgrade of engine emission, lightweight upgrade of structural parts, and of working device parameters, to further improve the comfort, safety, maintainability, reliabilit, supportability, and economy of the product.
● Model: XC870K Backhoe Loader
● Brand Name: XCMG
● Rated Load: 2500kg
● Operating Weight: 7600kg
● Rated Power: 70/74/74.9/82kw
● Classification: Mini Backhoe Loader
| Description | Parameter Value | Unit | ||||
| Chassis type | integrated | |||||
| Drive style | 4 drive/2 drive | |||||
| Digging working device | middle | |||||
| Outline dimensions(L×W×H) | 7440×2350×3450 | mm | ||||
| Total weight | 7600 | kg | ||||
| Max. travel speed | ≥40 | km/h | ||||
| Wheelbase | 2180 | mm | ||||
| Engine | Power | 82 | 74 | 74.9 | 70 | kw |
| Cummins | Cummins | Deutz dalian | weichai | |||
| Supplier | tier 3 | tier 2 | tier 3 | tier 2 | ||
| Loading device | Bucket capacity | 1 | m3 | |||
| Rated load | 2500 | kg | ||||
| Max. breakout | 66 | kN | ||||
| Max. discharge height | 2770 | mm | ||||
| Max. discharge distance | 755 | mm | ||||
| System pressure | 24 | Mpa | ||||
| Digging device | Bucket capacity | 0.3 | m3 | |||
| Max. digging radius | 5460 | mm | ||||
| Max. digging depth | 4425 | mm | ||||
| Max. digging force | 63 | kN | ||||
| System pressure | 24 | Mpa | ||||
XCMG Backhoe Loader Models
