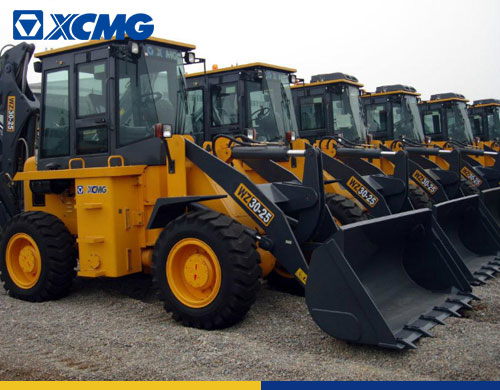

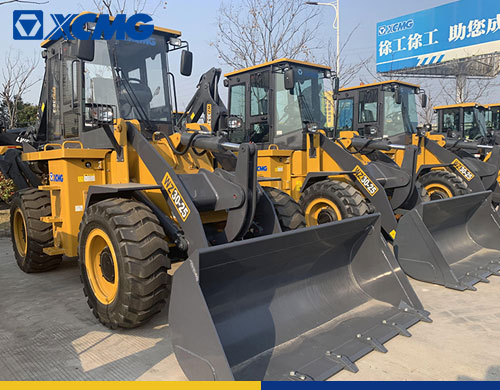

2.5Ton 1m³ Backhoe Loader WZ30-25
Mini Backhoe Loader
XCMG backhoe loader WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine.
● Model: WZ30-25 Backhoe Loader
● Brand Name: XCMG
● Rated Load: 2500kg
● Operating Weight: 9500kg
● Rated Power: 60 / 73.5kw
● Classification: Mini Backhoe Loader
Specifications
| Description | Unit | Parameter value |
| Bucket capacity(heaped) | m³ | 1 |
| Digger capacity | m³ | 0.3 |
| Dumping clearance | mm | 2650 |
| Dumping reach | mm | 930 |
| Max.steering angle | ° | ±35 |
| Max.steering angle of dig working device | ° | ±85 |
| Traceing speed I / II / III / IV | km/h | 0-6.2 / 0-12 / 0-20 / 0-30 |
| Back I / II speed | km/h | 0-8 / 0-28.5 |
| Diesel Model | YC4A110-T310/YC41390-T20 | |
| Modality | 4-stroke water-cooled inline type/ 4-stroke water-cooled inline type | |
| Rated power | kW | 73.5 (Turbocharged)/65 |
| Rated speed | r/min | 2200 |
| Wheel base | mm | 2600 |
| Tread | mm | 1700 |
| Tires | 16/70-24 | |
| Max.digging depth | mm | 4400 |
| Max.digging radium | mm | 5471 |
| Overall dimensions(L×W×H) | mm | 8000×2310×3424 |
| Operating weight | kg | 9500 |
