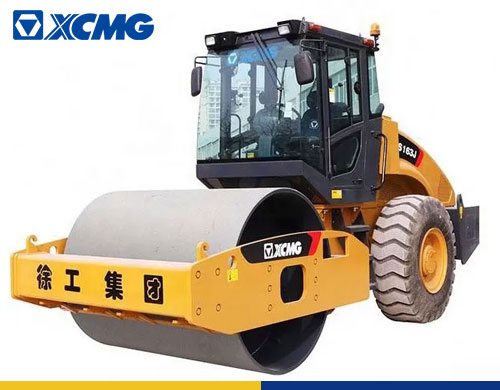

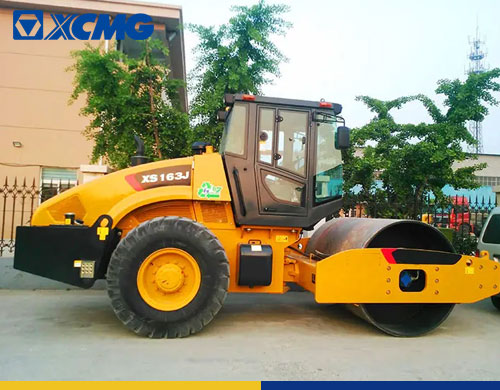

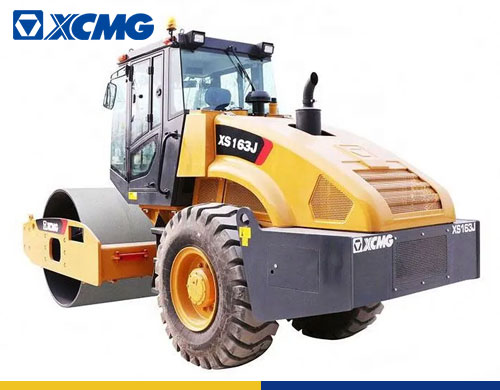

16Ton Road Roller XS163J
Single drum rollers & soil compactors
XS163J road roller has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc, and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects, with the maximum working depth up to 1.0m and above.
● Model: XS163J Road Roller
● Brand Name: XCMG
● Service Mass: 16Ton
● Distributed Mass: 8000kg
● Rated Power: 103/1800kW/rpm
● Classification: Single drum rollers & soil compactors
| Item | Unit | XS163J |
| Service mass | kg | 16000 |
| Distributed mass of driving wheel | kg | 8000 |
| Distributed mass of vibration wheel | kg | 8000 |
| Static line load | N/cm | 376 |
| Vibration frequency | Hz | 28/33 |
| Theoretical amplitude | mm | 1.9/0.95 |
| Exciting force | kN | 290/200 |
| Wheel base | mm | 3076 |
| Compaction width | mm | 2130 |
| Theoretical gradeability | % | 30 |
| Minimum turn radius | mm | 6800 |
| Diameter of vibration wheel | mm | 1523 |
| Minimum ground clearance | mm | 440 |
| Engine Model | SC4H140.1G2 | |
| Rated speed | r/min | 1800 |
| Rated power | kW | 103 |
| Overall dimension | mm | 6150*2300*3200 |
