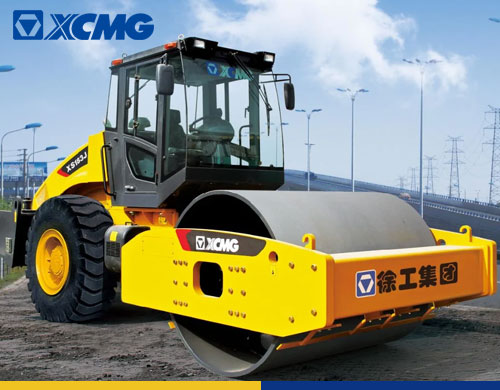

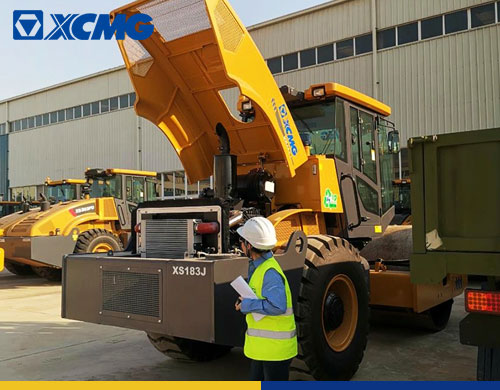

18Ton Road Roller XS183J
Single drum rollers & soil compactors
XS183J has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc, and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects, with the maximum working depth up to 1.0m and above.
● Model: XS183J Road Roller
● Brand Name: XCMG
● Service Mass: 18Ton
● Distributed Mass: 9000kg
● Rated Power: 118/1800kW/rpm
● Classification: Single drum rollers & soil compactors
| Model | Unit | XS183J |
| Operating weight | kg | 18000 |
| Load applied on front drum | kg | 9000 |
| Static linear pressure | N/cm | 422 |
| Speed range | km/h | F/R |
| Gear I | 2.52 | |
| Gear II | 4.98 | |
| Gear III | 11.17 | |
| Theoretical gradeability | % | 30 |
| Min. external turning radius | mm | 6500 |
| Steering angle | ° | ±33 |
| Oscillating angle | ° | ±11 |
| Vibration frequency | Hz | 28 |
| Nominal amplitude (high/low) | mm | 1.9/0.95 |
| Excitation force (high/low amplitude) | kN | 290/145 |
| Engine model | Shaihai Diesel Engine SC8D156.2G2B1 | |
| Type | / | |
| Max. power | kW | 115 |
| Hydraulic oil tank capacity | L | 170 |
| Fuel tank capacity | L | 310 |
