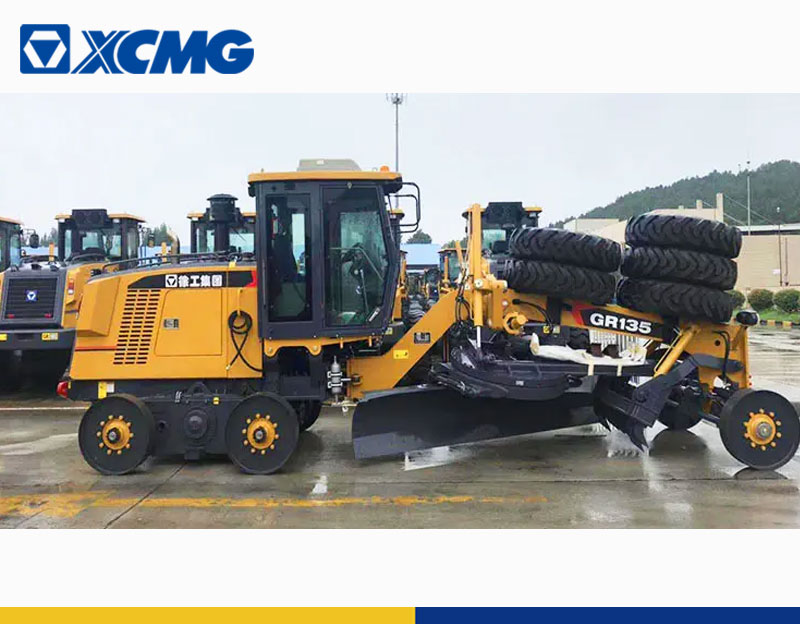

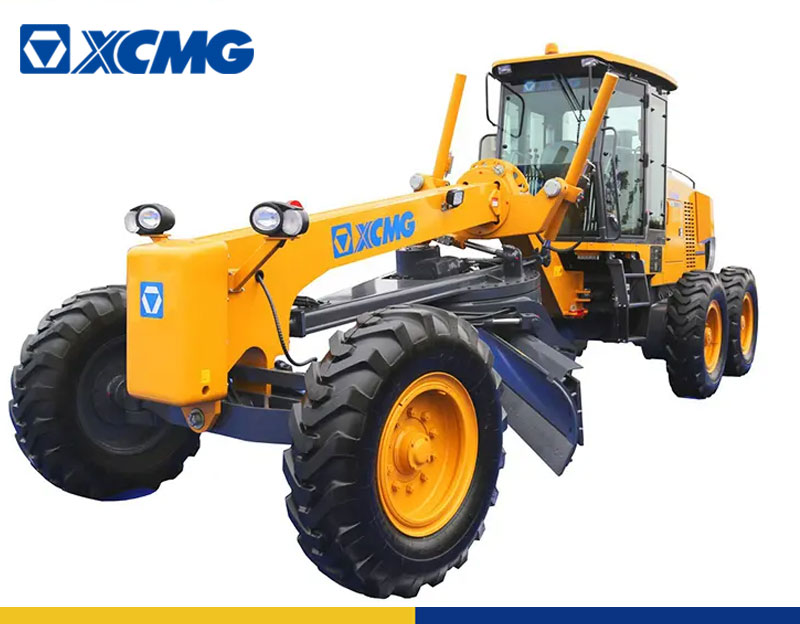

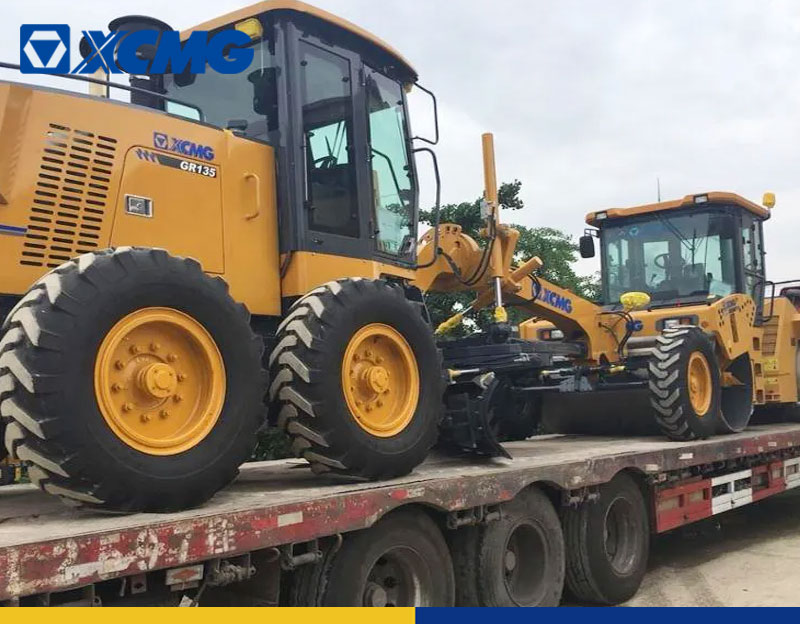

11Ton 135HP Motor Grader GR135
Asphalt Soil Motor Grader
The GR135 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. Motor Grader GR135 is the necessary construction machinery for national defense construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
● Model: GR135 Motor Grader
● Brand Name: XCMG
● Operating Weight: 11000KG
● Engine Model: Cummins 6BT5.9
● Rated power/speed (kW/rpm): 97/2200
● Classification: Asphalt Soil Motor Grader
| Item | GR135 | ||
| Basic parameters | Engine model | 6BT5.9-C130-Ⅱ | |
| Rated power/speed | 97(2200r/min) | ||
| Overall dimension (standard) | 8015*2380*3050mm | ||
| Total weight (standard) | 11000kg | ||
| Tire specification | 13.00-24 | ||
| Ground clearance (front axle) | 515mm | ||
| Tread | 2020mm | ||
| Space of front and rear axles | 5780 mm | ||
| Performance parameters | Forward velocity | 5、8、13、20、30、42km/h | |
| Reverse speed | 5、13、30km/h | ||
| Tractive effort f=0.75 | 61.3kN | ||
| Maximum gradeability | 20% | ||
| Tire inflation pressure | 300kPa | ||
| Working system pressure | 16MPa | ||
| Transmission pressure | 1.3—1.8Mpa | ||
| Working parameters | Maximum steering angle of front wheel | ±49° | |
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | ±16° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | 6.6m | ||
| Scrape knife | Maximum lift height | 410mm | |
| Maximum cutting depth | 515mm | ||
| Maximum tilt angle | 90° | ||
| Cutting angle | 54°—90° | ||
| Angle of revolution | 360° | ||
| Length & chord height | 3660*610mm | ||
| Oil filling amount | Coolant | 50L | |
| Fuel tank | 280L | ||
| Engine | 18L | ||
| Transmission | 26L | ||
| Hydraulic oil | 96L | ||
| Drive axle | 28L | ||
| Balancing box | 46 L | ||
