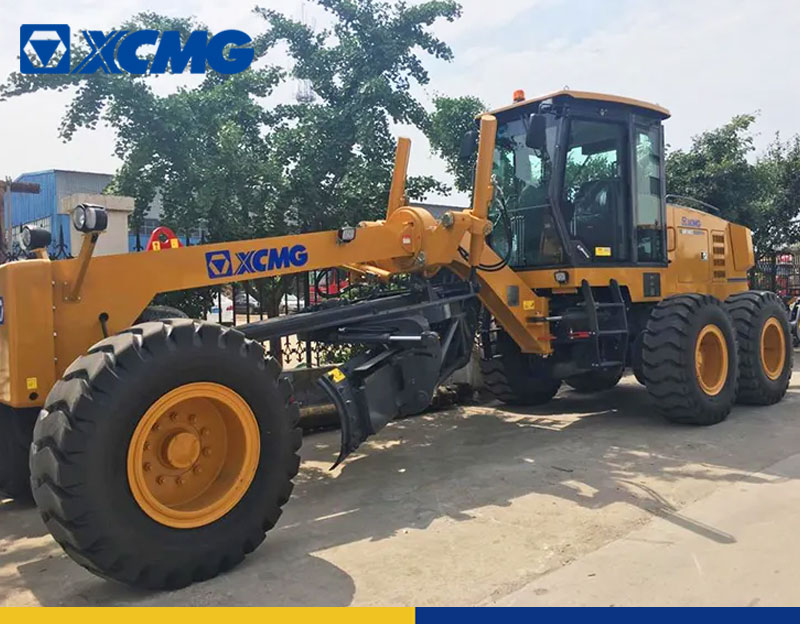

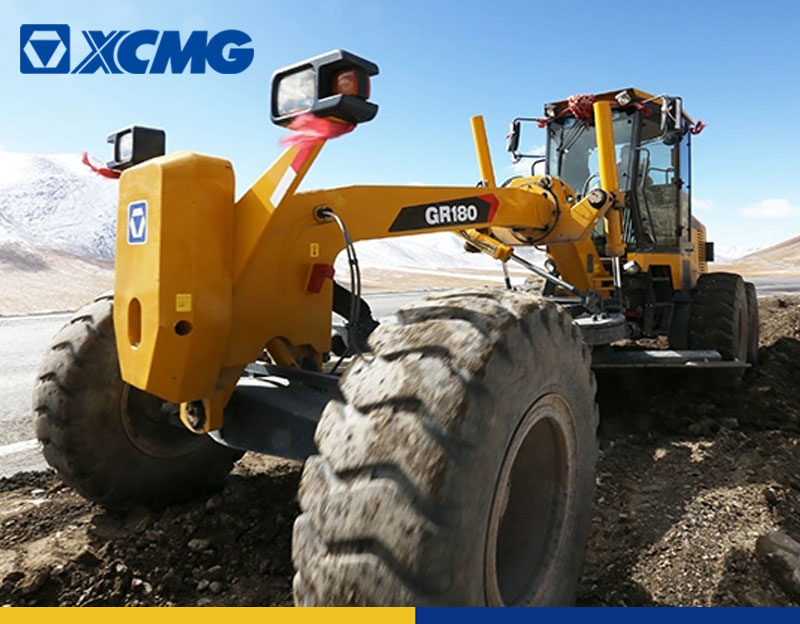

15Ton Motor Grader GR180
Asphalt Soil Motor Grader
XCMG 180hp asphalt soil motor graders GR180 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.
● Model: GR180 Motor Grader
● Brand Name: XCMG
● Operating Weight: 15400KG
● Engine Model: Cummins 6CTA8.3
● Rated power/speed (kW/rpm): 142/2200
● Classification: Asphalt Soil Motor Grader
| Item | GR180 | ||
| Basic parameters | Engine model | 6CTA8.3-C190-II | |
| Rated power/speed | 142kW/2200rpm | ||
| Overall dimension (standard) | 8900x2625x3420 | ||
| Total weight (standard) | 15400 kg | ||
| Tire specification | 17.5-25 | ||
| Ground clearance (front axle) | 430mm | ||
| Tread | 2156mm | ||
| Space of front and rear axles | 6219 mm | ||
| Space of middle and rear wheels | 1538 mm | ||
| Performance parameters | Forward velocity | 5/8/11/19/23/38km/h | |
| Reverse speed | 5/11/23km/h | ||
| Tractive effort f=0.75 | ≥79 kN | ||
| Maximum gradeability | ≥25% | ||
| Tire inflation pressure | 260kPa | ||
| Working system pressure | 18MPa | ||
| Transmission pressure | 1.3-1.8Mpa | ||
| Working parameters | Maximum steering angle of front wheel | ±50° | |
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | ±15° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | 7.3m | ||
| Scrape knife | Maximum lift height | 450mm | |
| Maximum cutting depth | 500mm | ||
| Maximum tilt angle | 90° | ||
| Cutting angle | 28°-70° | ||
| Angle of revolution | 360° | ||
| Length & chord height | 3965x610mm | ||
