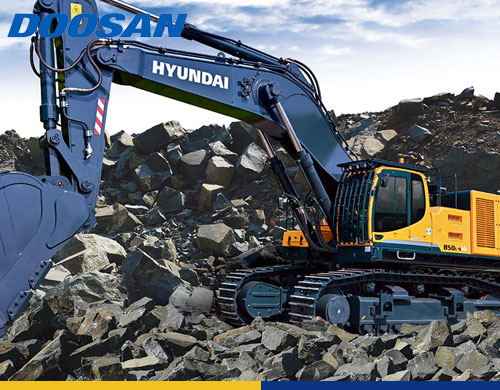

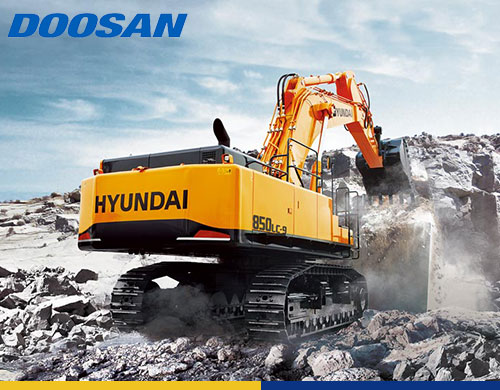

85Ton 4.5m³ Hyundai R850LC-9VS
Large Tonnage Crawler Excavator
● Model: R850LC-9VS Excavator
● Brand Name: Hyundai
● Engine Model: CUMMINS QSX15
● Rated Power: 510hp/1800rpm
● Bucket Capacity: 4.5m³
● Operating Weight: 84 ton
● Classification: Large Crawler Excavator
● Classification: Small Crawler Excavator
The Hyundai R850L-9VS tracked excavator is suitable for large construction and mining sites. Operator comfort, reliability and durability on difficult terrain is key. New innovations like two-stage auto decel system and the new economy mode help to conserve fuel and reduce the impact on the environment.
Specifications
| Operating Weight | 84 ton |
| Bucket Capacity | 4.5 m³ |
| Size | - |
ENGINE
| Emission | TIER 3 |
| Engine model | CUMMINS QSX15 |
| Rated Power | 510hp/1800rpm |
| Max. Torque | 241kgf·m/1400rpm |
HYDRAULIC
| Main pumps rated flow | 2x504 ℓ/min |
| Implement circuit | 330 kgf/cm2 |
TANK CAPACITY
| Fuel tank | 940 ℓ |
| Hydraulic tank | 450 ℓ |
| DEF/ ADBLUE tank | - ℓ |
PERFORMANCE
| Swing speed | 6.2 rpm |
| Travel speed | 3.8 km/h |
| Max. Traction force | 59300 kgf |
| Max. gradeability | 35 deg |
| Bucket Digging Force (ISO) | 49310 kgf |
| Arm Digging Force (ISO) | 37090 kgf |
DIMENSIONS
| Overall length | 13100 mm |
| Overall height | 5040 mm |
| Overall width | 4495 mm |
| Tail swing radius | 4315 mm |
| Tumbler distance | 5030 mm |
| Ground clearance | 880 mm |
WORKING RANGE
| Boom length | 7200 mm |
| Arm length | 2950 mm |
| Max. Digging reach | 12250 mm |
| Max.Digging depth | 7240 mm |
| Max. Digging Height | 11750 mm |
| Max. Dumping Height | 7500 mm |
| Min. Swing radius | 5120 mm |
