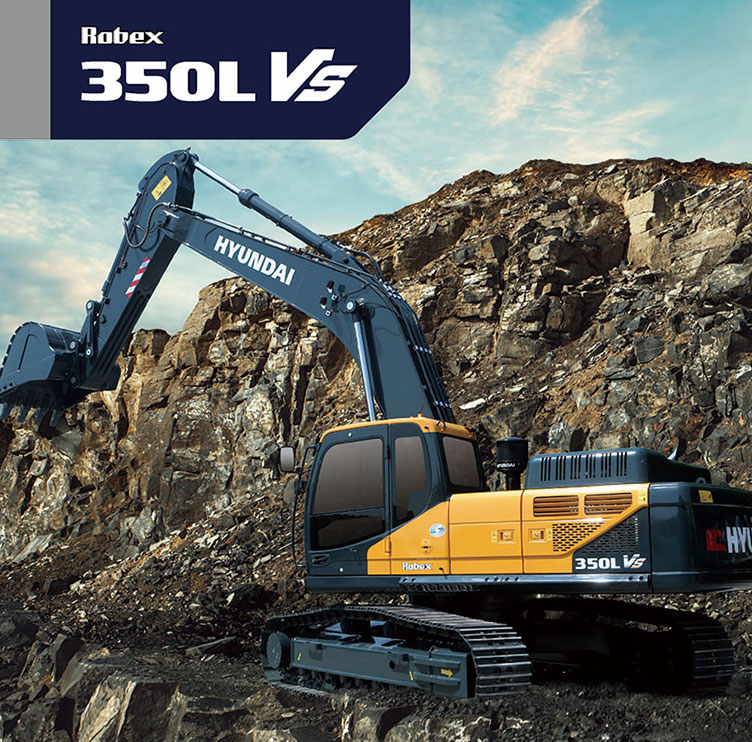

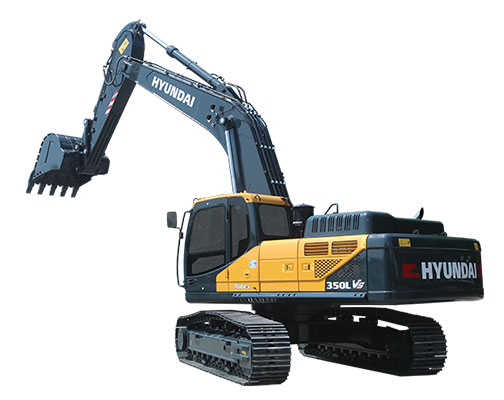

33.2Ton 1.6M³ Hyundai R350LVS
Large Tonnage Crawler Excavator
● Model: R350LVS Excavator
● Brand Name: Hyundai
● Engine Model: HYUNDAI HE8.9
● Rated Power: 221KW (296HP) / 1850RPM
● Bucket Capacity: 1.6M³
● Operating Weight: 33200KG
● Classification: Large Crawler Excavator
The IPC system of Hyundai Large Excavator R350LVS intelligently controls the flow of the main pump through the operating handle, thereby saving fuel consumption; - The VPC system of Hyundai Large Excavator R350LVS realizes variable control of the pilot pressure to ensure that the operating speed and fuel performance are coordinated and matched in all working modes to ensure high efficiency and low consumption
Specifications
| Model | Items | R350LVS |
| Engine | Engine model | Cummins QSL |
| Engine power | 202kW/1850rpm | |
| Max torque | 148kgf.m/1400rpm | |
| Bore*diameter | 114*145mm | |
| Displacement | 8900cc | |
| Hudraulic system | Main pump | two plounger pumps |
| Rated flow of main pump | 2*315L/min | |
| Pilot pump and Pilot loop | Gear pump | |
| Hydraulic motor | Two-speed axial plunger | |
| Working device circuit | 350kgf/cm2 | |
| Slewing system | 300kgf/cm2 | |
| Drive & brake system | Driving type | full hydraulic |
| Speed Deceleration system | Axial piston motor | |
| Max traction force | 27ton | |
| Parking brake | Multi-piece, wet brake | |
| Slewing system | Slewing motor | Axial piston motor |
| Rotary deceleration | Planetary gear reducer | |
| Rotary brake | Multi-piece | |
| Coolant & lubricating oil | Fuel tank | 560Liter |
| engine Coolant | 50Liter | |
| Engine oil | 31.7Liter | |
| Hydraulic system | 330Liter | |
| Hydraulic tank | 190Liter | |
| Rotary device | 11Liter | |
| Chassis | Medium frame | X-type |
| Track support frame | Five-sided box | |
| Number of track shoes | 48pcs each side | |
| Number of drag sprocket | 2pcs each side | |
| Number of rollers | 9pcs each side | |
| weight | Operating weight | 33200kg with 600mm track shoe |
| Upper weight | 14310kg | |
| Counterweight | 6200kg | |
| Boom and arm | 3030kg | |
| Dimension | length*width*height | 10990*3280*3460mm |
| Counterweight ground clearance | 1200mm | |
| tailer length | 3265mm | |
| Arm | 6450mm | |
| Boom | 2850mm | |
| Bucket | 1.6cbm | |
| Max. digging height | 10540mm | |
| Max. digging depth | 6970mm | |
| Max. digging reach | 10920mm | |
| Max. loading height | 7380mm | |
| Max. swing radius | 4520mm |
