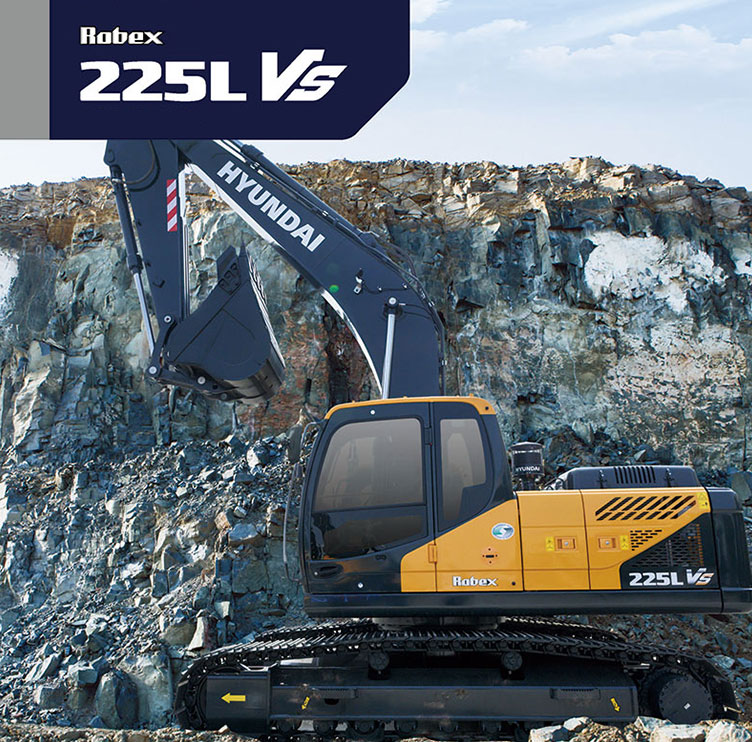

22.5Ton 1.05M³ Hyundai R225LVS
Medium Tonnage Crawler Excavator
● Model: R225LVS Excavator
● Brand Name: Hyundai
● Engine Model: CUMMINS QSB7
● Rated Power: 125KW/1900RPM
● Bucket Capacity: 1.05M³
● Operating Weight: 22570KG
● Classification: Medium Crawler Excavator
Hyundai VS series excavators, equipped with Tier3 engines, have superior quality, higher reliability and durability, higher comfort, higher operating efficiency, lower emissions, lower fuel consumption, and lower noise. The medium excavator R225LVS is installed with durable heat sinks, all of which have been tested for high durability in harsh environments. Even in a more difficult working environment, VS series R225LVS excavator can also reflect more excellent product heat dissipation performance.
Specifications
| Item | Overall weight | kg | 22570 |
| Bucket capacity | M3 | 1.05 | |
| Engine | Model | --- | CUMMINS QSB6.7 |
| Rated power | Kw/rpm | 113/1900 | |
| Max.torque | Kgf.m/rpm | 63/1500 | |
| Hydraulic | Working pressure | Kg/cm2 | 350(250) |
| Working performance | Max, traction force | ton | 20.2 |
| Walking speed | Km/h | 5.5/3.4 | |
| Gradeability | ° | 35 | |
| Overall dimensions | Overall length | mm | 9550 |
| Overall width | mm | 2990 | |
| Overall height | mm | 3080 | |
| Rear turning radius | mm | 2840 | |
| Oil tank capacity | Fuel tank | t | 400 |
| Hydraulic oil tank | t | 160 | |
| Operating scope | Max.digging radius | mm | 9980 |
| Ground Max.digging radius | mm | 9820 | |
| Max.digging depth | mm | 6730 | |
| Max.vertical digging depth | mm | 6280 | |
| Max.digging height | mm | 9600 | |
| Max.dumping height | mm | 6780 | |
| Min. Turning radius | mm | 3740 |
