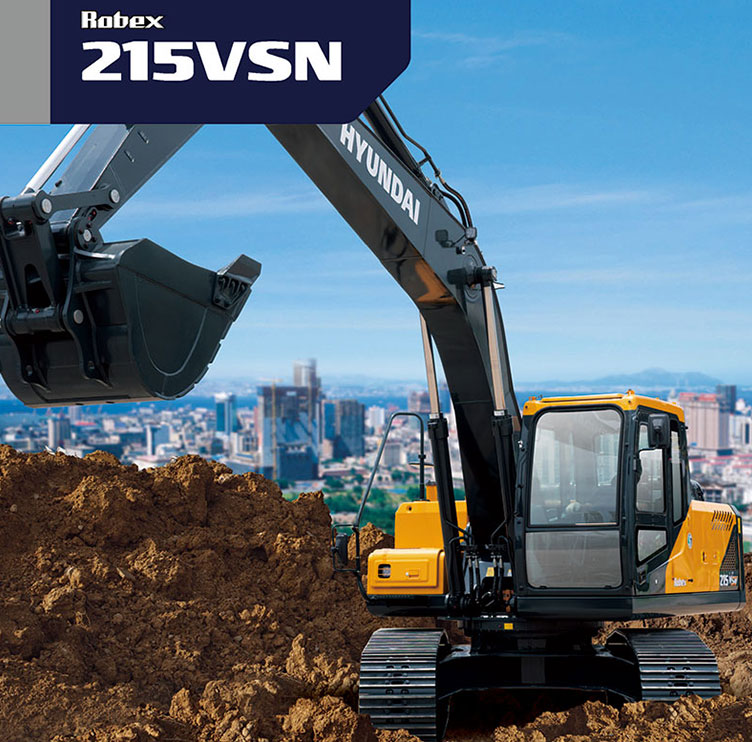

19.9Ton 0.83M³ Hyundai Excavator R215VSN
Medium Tonnage Crawler Excavator
● Model: R215VSN Excavator
● Brand Name: Hyundai
● Engine Model: CUMMINS QSB7
● Rated Power: 125KW/1900RPM
● Bucket Capacity: 0.83M³
● Operating Weight: 19900KG
● Classification: Medium Crawler Excavator
Create value for users! Hyundai Medium Excavator R215VSN Series excavator: the perfect combination of environmental protection, performance and quality! Hyundai Medium Excavator R215VSN is Tested by the National Construction Machinery Quality Supervision and Inspection Center, it meets the certification standards for agricultural excavators.
Specifications
| Model | unit | R215VS | |
| Operating weight | kg | 20700 | |
| bucket capacity | m³ | 0.92 | |
| Engine | Engine Model | QSB6.7 | |
| Rated power/speed | kW/rpm | 113/1950 | |
| Max. torque/speed | kgf/rmp | 62.6/1500 | |
| hydraulic system | working pressure | kgf/cm³ | 300 |
| Rate flow of main pump | L/min | 2×220 | |
| Working Performance | Swing speed | rmp | 12.5 |
| Travel speed | km/h | 5.2/3.5 | |
| Max.Bucket digging force | kgf | 13500 | |
| Max.arm crowd force | kgf | 9700 | |
| Max. gradeability | 35° | ||
| Max.traction force | kgf | 19500 | |
| running gear | A length of track | mm | 4160 |
| B ground contact length of track | mm | 3360 | |
| C track gauge | mm | 2200 | |
| D Track width | mm | 600 | |
| Ground pressure | kgf/cm³ | 0.48 | |
| E min ground clearance | mm | 480 | |
| Oil tank capacity | fuel tank | L | 320 |
| hydraulic oil tank | L | 165 | |
| Dimension | F Overall length | mm | 9510 |
| G Overall width | mm | 2800 | |
| H Overall height | mm | 2990 | |
| I Clearance under counter weight | mm | 1060 | |
| J Length of tail portion | mm | 2770 | |
| K The width of the upper | mm | 2700 | |
| L Overall height of cab | mm | 2920 | |
| J' tail swing radius | mm | 2830 | |
| Working ranges | A Max excavating distance | mm | 9930 |
| A'Max ground excavating distance | mm | 9760 | |
| B Max. digging depth | mm | 6800 | |
| B'Max.ground digging depth | mm | 6610 | |
| C Max. vertical wall digging depth | mm | 6060 | |
| D Max. digging height | mm | 9730 | |
| E Max. dumping height | mm | 6910 | |
| F Min. swing radius | mm | 3440 | |
