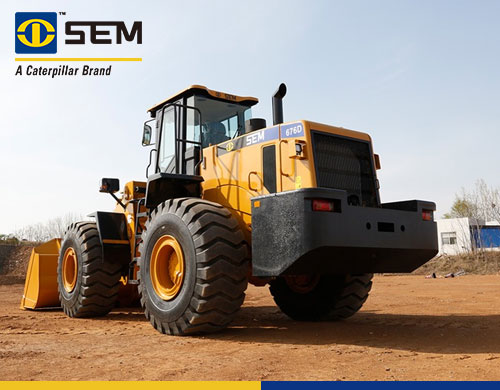

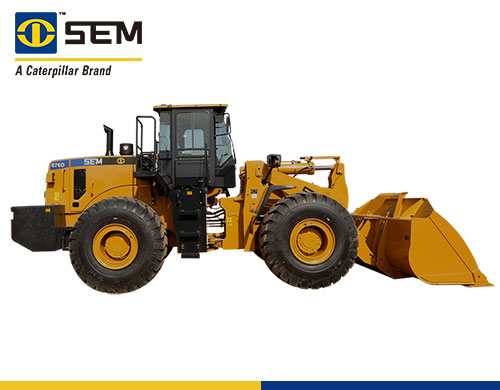

7Ton 4.2-7.0m³ Wheel Loader SEM SEM676D
Medium Large Wheel Loader
The SEM676D wheel loader is designed for large-tonnage and heavy-duty applications, as well as, long lasting and continuous working conditions, helping customers complete their work with high efficiency and quality.
● Brand Name: SEM
● Rated power: 199kW
● Bucket Capacity: 4.2-7.0m³
● Rated Load: 7000kg
● Operating Weight: 23,000kg
● Classification: Medium Large Wheel Loader
| Model | |
|---|---|
| Model | SEM676D |
| Main Specifications | |
| Rated Payload | 7,000kg |
| Bucket Capacity | 4.2-7.0m³ |
| Wheel Base | 3,450mm |
| Minimum Turning Radius Over Bucket | 7,790mm |
| Operating Weight | 23,000kg |
| Length | 8,840mm |
| Width | 3,260mm |
| Height | 3,530mm |
| Operating Specifications | |
| Breakout Force | 215kN |
| Dump Clearance | 3,250mm |
| Drawbar Pull Force | 208kN |
| Dump Reach | 1,310mm |
| Transmission | |
| Transmission Type | EH Control |
| Transmission Gears | F4/R3 |
| Engine | |
| Engine Model | Weichai WP10G270 |
| Rated Power | 199kW |
| Rated Speed | 2,200r/min |
| Implement Hydraulic System | |
| Hydraulic Cycle Time | 9.8 |
| Implement Control Type | Pilot Control |
| Brake System | |
| Service Brake | Dry & Caliper, Air to Oil Control |
| Parking Brake | Drum Type Shoe Brake |
| Steering System | |
| Steering Angle (L/R) | 35° |
| Tires | |
| Size | 26.5-25 |
| Type | Bias |
| Layer | 24 |
| Textured Type | L3/E3 |
SEM Wheel Loader Models
