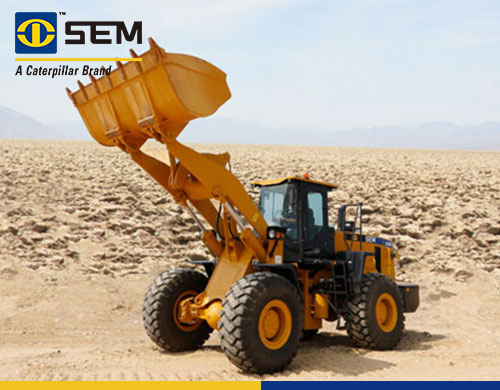

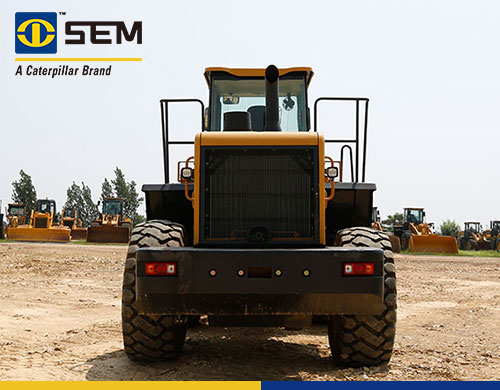

5Ton 2.6-4m³ Wheel Loader SEM SEM658D
Medium Large Wheel Loader
The 658D wheel loader applications incldues Landscaping, building, sewer/water tie-in, local utility construction Ready mix cement/concrete products, quarry/stone, clay, recycled aggregate, sand and gravel, highwa, roads, tunnel, airport, residential commercial construction.
● Brand Name: SEM
● Rated power: 162kW
● Bucket Capacity: 2.6-4m³
● Rated Load: 5000kg
● Operating Weight: 17,158kg
● Classification: Medium Large Wheel Loader
| Model | ||
|---|---|---|
| Model | SEM658D - Weichai | SEM658D - Cummins |
| Main Specifications | ||
| Rated Payload | 5,000kg | 5,000kg |
| Operating Weight with Standard Bucket | 17,158kg | 17,084kg |
| Bucket Capacity | 2.6-4m³ | 2.6-4m³ |
| Operating Specifications | ||
| Breakout Force | 178kN | 178kN |
| Max. Drawbar Force | 170KN | 169KN |
| Transmission | ||
| Transmission Gears | F4/R3 | F4/R3 |
| Torque Converter Type | Single Stage, 3 Elements | Single Stage, 3 Elements |
| Maker & Type | SEM160 | SEM160 |
| Axle (Axle, Tire & Brakes) | ||
| Main Reducer type | Spiral Bevel Gear, Single Stage | Spiral Bevel Gear, Single Stage |
| Final Drive Reduction Type | Planetary Type,Single Stage | Planetary Type,Single Stage |
| Rear- oscillation +/- | ±11° | ±11° |
| Engine | ||
| Engine Model | Weichai WD10G220E21 | Cummins 6LTAA9.3 |
| Rated Power | 162kW | 162kW |
| Rated Speed | 2,200r/min | 2,200r/min |
| Displacement | 9.7L | 9.3L |
| Emission | T2/Stage2 | T2/Stage2 |
| Implement Hydraulic System | ||
| Implement System Type | Open Center | Open Center |
| Hydraulic Cycle Time | 9.3s | 9.3s |
| System Pressure Setting | 18Mpa | 18Mpa |
| Raise | 5.37s | 5.37s |
| Brake System | ||
| Service Brake | Dry&Caliper, Air to Oil Control | Dry&Caliper, Air to Oil Control |
| Parking Brake | Drum/Shoe | Drum/Shoe |
| Service Refill Capacity | ||
| Fuel Tank | 252L | 252L |
| Engine Lubricating Oil | 21L | 21L |
| Hydraulic System | 165L | 165L |
| Transmission Oil | 45L | 45L |
| Tires | ||
| Size | 23.5-25 | 23.5-25 |
| Type | Bias | Bias |
| Layer | 16 | 16 |
