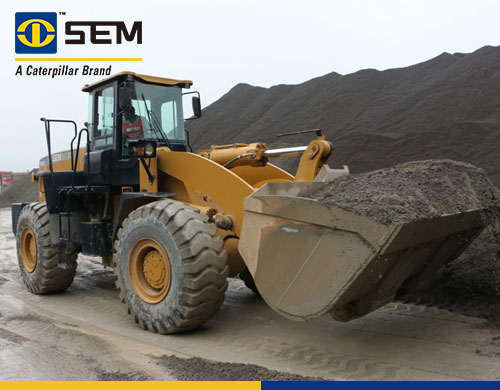

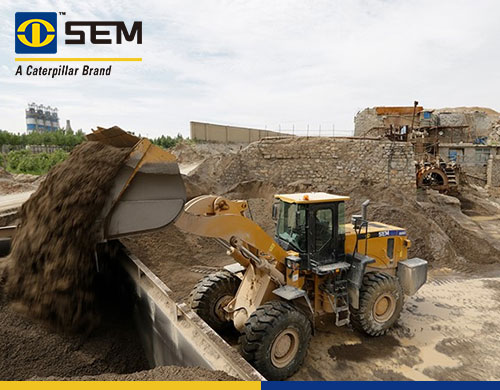

6Ton 3.3-5.5m³ Wheel Loader SEM SEM660D
Medium Large Wheel Loader
The SEM660D wheel loader is designed for large-tonnage and heavy-duty applications, as well as, long lasting and continuous working conditions, helping customers complete their work with high efficiency and quality.
● Brand Name: SEM
● Rated power: 178kW
● Bucket Capacity: 3.3-5.5m³
● Rated Load: 6000kg
● Operating Weight: 20,000kg
● Classification: Medium Large Wheel Loader
| Model | |
|---|---|
| Model | SEM660D |
| Main Specifications | |
| Rated Payload | 6,000kg |
| Operating Weight with Standard Bucket | 20,000kg |
| Bucket Capacity | 3.3-5.5m³ |
| Operating Specifications | |
| Breakout Force | 183kN |
| Transmission | |
| Transmission Gears | F4/R4 |
| Torque Converter Type | Single stage 3 elements |
| Axle (Axle, Tire & Brakes) | |
| Main Reducer type | Spiral bevel gear, single stage |
| Final Drive Reduction Type | Planetary type, single stage |
| Rear- oscillation +/- | ±11° |
| Engine | |
| Engine Model | WD10G240 |
| Rated Power | 178kW |
| Rated Speed | 2,000r/min |
| Displacement | 9.726L |
| Emission | T2/Stage2 |
| Implement Hydraulic System | |
| Implement System Type | Single load sensing flow sharing system |
| Hydraulic Cycle Time | 9.7s |
| System Pressure Setting | 18Mpa |
| Raise | 5.3s |
| Brake System | |
| Service Brake | Dry & caliper, air to oil control |
| Parking Brake | Drum type shoe brake,spring applied & oil released |
| Service Refill Capacity | |
| Fuel Tank | 252L |
| Engine Lubricating Oil | 21L |
| Hydraulic System | 165L |
| Transmission Oil | 53L |
| Tires | |
| Size | 23.5-25 |
| Type | Bias |
| Layer | 20 |
