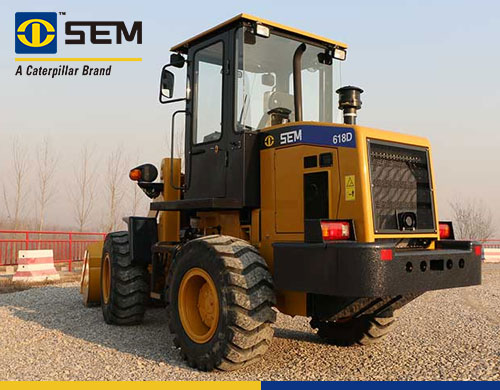

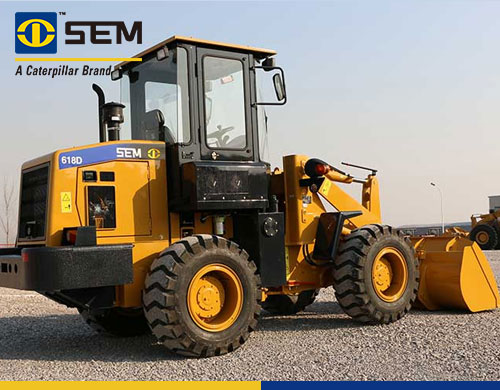

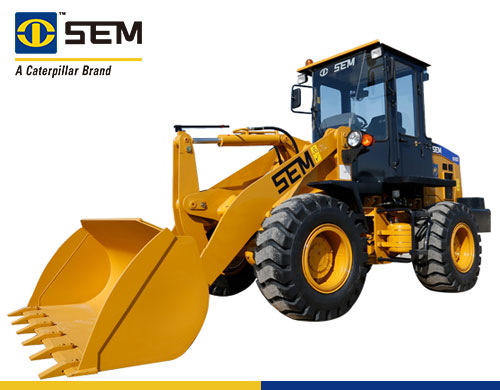

3Ton 0.9-1.0m³ Wheel Loader SEM SEM618D
Small Size Wheel Loader
Wheel Loader SEM SEM618D: High efficiency thermal energy control technology, provide higher reliability and efficiency
● Brand Name: SEM
● Rated power: 60kW
● Bucket Capacity: 0.9-1.0m³
● Rated Load: 1,800kg
● Operating Weight: 5,940kg
● Classification: Small Size Wheel Loader
Premium fiber seat with 4 direction and suspension adjustable, lower noise cab make operation environment more comfortable.
Specifications
| Model | |
|---|---|
| Model | SEM618D |
| Main Specifications | |
| Rated Payload | 1,800kg |
| Operating Weight with Standard Bucket | 5,940kg |
| Bucket Capacity | 0.9-1.0m³ |
| Operating Specifications | |
| Breakout Force | 63KN |
| Max. Drawbar Force | 55KN |
| Transmission | |
| Transmission Gears | F2/R2 |
| Torque Converter Type | Single stage, 3 elements |
| Maker & Type | ZL15 |
| Axle (Axle, Tire & Brakes) | |
| Rear- oscillation +/- | ±12 |
| Engine | |
| Engine Model | YT4B4-22 |
| Rated Power | 60kW |
| Rated Speed | 2,200r/min |
| Displacement | 4.76L |
| Implement Hydraulic System | |
| Implement System Type | Open center |
| Hydraulic Cycle Time | 7.8s |
| System Pressure Setting | 17Mpa |
| Raise | 4.35s |
| Brake System | |
| Service Brake | Dry&caliper, air to oil control |
| Parking Brake | Disk & Caliper |
| Tires | |
| Size | 16/70-20 |
| Type | PR |
| Layer | 14 |
| Textured Type | L-3 |
