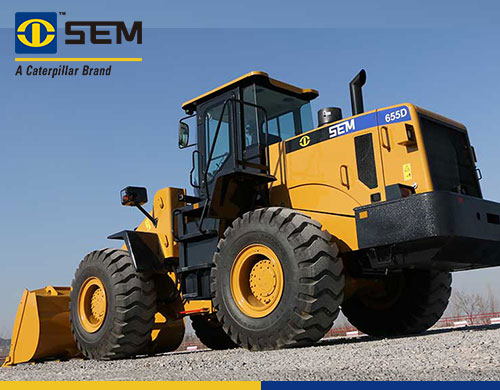

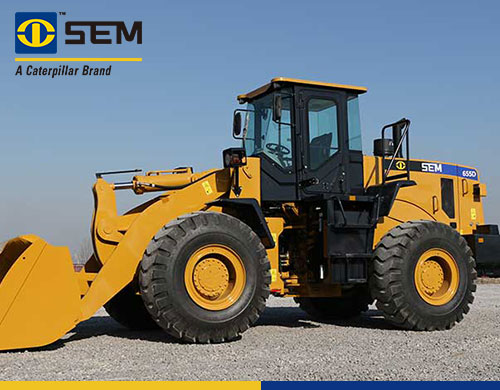

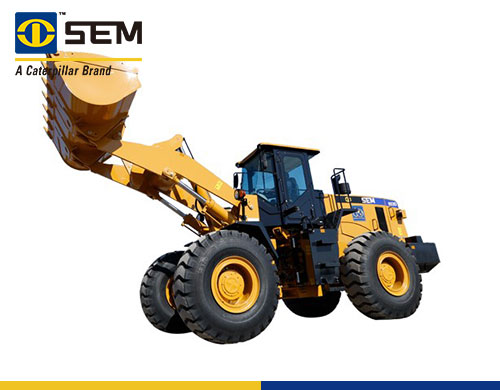

5Ton 2.7-4.5m³ Wheel Loader SEM SEM655D
Medium Large Wheel Loader
The sturdy design of the SEM 655D wheel loader makes it the perfect machine for large volume earth moving applications.
● Brand Name: SEM
● Rated power: 162kW
● Bucket Capacity: 2.7-4.5m³
● Rated Load: 5000kg
● Operating Weight: 16,800kg
● Classification: Medium Large Wheel Loader
In Hopper feeding and Coal loading applications the SEM 655D loader can load more, move faster and burn less fuel. Multiple work tools are available for increased versatility.
Specifications
| Model | ||
|---|---|---|
| Model | SEM655D - Weichai | SEM655D - Cummins |
| Main Specifications | ||
| Rated Payload | 5,000kg | 5,000kg |
| Operating Weight with Standard Bucket | 16,800kg | 16,700kg |
| Bucket Capacity | 2.7-4.5m³ | 2.7-4.5m³ |
| Operating Specifications | ||
| Breakout Force | 168kN | 168kN |
| Transmission | ||
| Transmission Gears | F4/R4 | F4/R4 |
| Torque Converter Type | Sigle stage 3 elements | Sigle stage 3 elements |
| Maker & Type | SEM TR200 | SEM TR200 |
| Axle (Axle, Tire & Brakes) | ||
| Rear- oscillation +/- | ±11° | |
| Engine | ||
| Engine Model | Weichai WD10G | Cummins 6LT9.3 |
| Rated Power | 162kW | 162kW |
| Rated Speed | 2,000r/min | 2,000r/min |
| Displacement | 9.726L | 9.242L |
| Implement Hydraulic System | ||
| Implement System Type | Twin pump flow merging hydraulic system | Twin pump flow merging hydraulic system |
| Hydraulic Cycle Time | 9.5s | 9.5s |
| System Pressure Setting | 17Mpa | 17Mpa |
| Raise | 5.13s | 5.13s |
| Brake System | ||
| Service Brake | Dry & caliper, air to oil control | Dry & caliper, air to oil control |
| Parking Brake | Drum type shoe brake, spring applied & oil released | Drum type shoe brake, spring applied & oil released |
| Service Refill Capacity | ||
| Fuel Tank | 260L | 260L |
| Engine Lubricating Oil | 21L | 21L |
| Hydraulic System | 165L | 165L |
| Transmission Oil | 53L | 53L |
| Tires | ||
| Size | 23.5-25 | 23.5-25 |
| Type | Bias | Bias |
| Layer | 16 | 16 |
