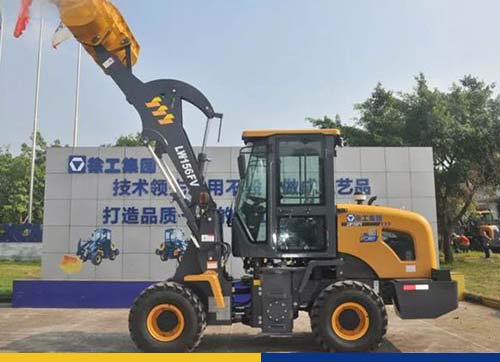

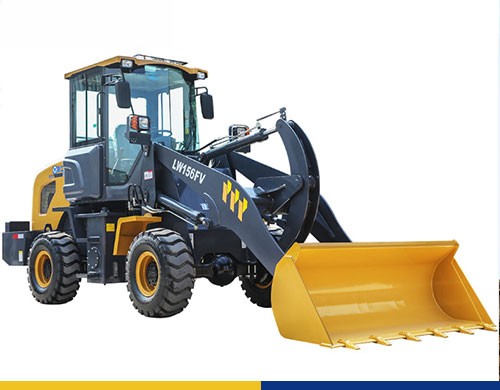

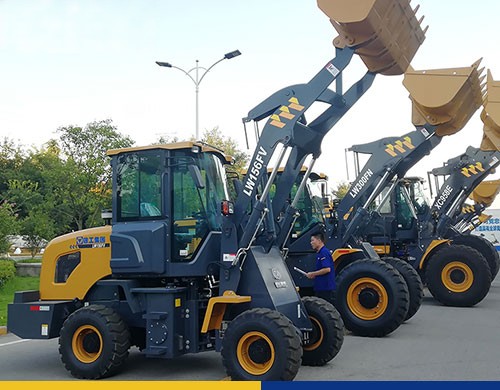

XCMG LW156FV
Mini Wheel Loader
XCMG mini wheel loader LW156FV has the characteristics of advance, reliability, energy-saving, high-efficiency, comfort, convenience and multifunction.
● Brand Name: XCMG
● Engine Model: YN27GBZ
● Net Power: 55kW
● Bucket Load: 0.7m³
● Rated Load: 1100 kg
● Classification: 1Ton Mini Wheel Loader
XCMG LW156FV mini wheel loader can carry out shovel loading and short-distance transportation of materials, and can also carry out operations such as traction, leveling and stacking.
Specifications
| Item | Short boom | Standard boom | Long boom | Units |
| Rated load | 1200 | 1100 | 1000 | kg |
| Tipping load | 2400 | 2200 | 2000 | kg |
| Standard | 3000 | 3300 | 3500 | mm |
| Unloading distance | 785 | 830 | 1070 | mm |
| Rated bucket capacity | 0.7 | m3 | ||
| Overall mass | 4450 | 4550 | 4650 | kg |
| Wheel base | 2300 | mm | ||
| Tread | 1500 | mm | ||
| Maximum hoisted hinge pin height | 3730 | 3920 | 4190 | mm |
| Maximum breakout force | 44 | kN | ||
| Maximum traction | 40 | |||
| Boom hoisting time | 5.5 | s | ||
| Three items and time | 9 | s | ||
| Minimum turning radius (tire center) | 4620 | mm | ||
| Articulation angle | 35 | ° | ||
| Climbing capacity | 25 | ° | ||
| Minimum ground clearance | 260 | mm | ||
| Tire specification | 16/70-16 | - | ||
| Overall dimensions (length*width*height) | 5890*2060*2900 | 6140*2060*2900 | 6390*2060*2900 | mm |
| Engine Model | YN27GBZ | |||
| Rated power/speed | 55/2400 | kW/rpm |
