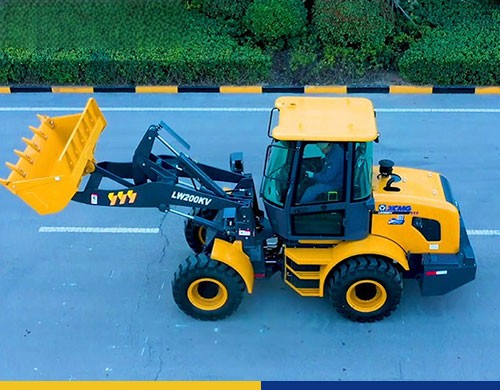

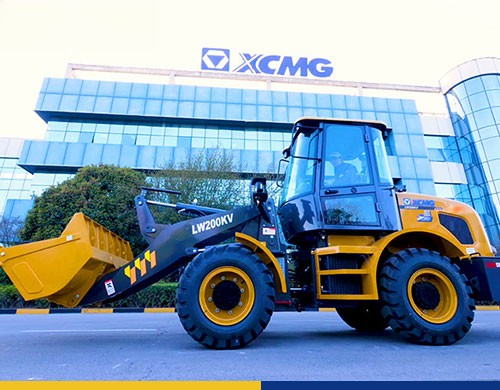

XCMG LW200KV
2.0Ton Mini Wheel Loader
XCMG loader LW200KV tire loader is based on the comprehensive upgrade of product emission, reliability, comfort, and convenience of maintenance. XCMG loader LW200KV further enhances the power of the whole machine, and the whole machine is more powerful and powerful.
● Brand Name: XCMG
● Bucket Load: 1.1m³
● Net Power: 66.2kW
● Rated Load: 2000 kg
● Overall Dimension(LxWxH): 6365×2060×2950mm
● Classification: 2.0Ton Mini Wheel Loader
| Description | Specification | Unit | |
| Rated operating load | 2000 | kg | |
| Bucket capacity | 1 | m³ | |
| Machine weight | 6400 | kg | |
| Dump clearance at maximum lift | 2580 | mm | |
| Reach at maximum lift | 960 | mm | |
| Wheel base | 2300 | mm | |
| Tread | 1490 | mm | |
| Max. breakout force | 56 | Kn | |
| Max. horse power | 45 | Kn | |
| Hydraulic cycle time-raise | 5 | s | |
| Total hydraulic cycle time | 9 | s | |
| Min. circle radius over outside bucket | 5100 | mm | |
| Min. turning radius over tyres | 4450 | mm | |
| Articulation angle | 35 | ° | |
| Gradeability | 28 | ° | |
| Tyre size | 16/70-20 | ||
| Overall machine dimension LxWxH | 5950x1960x2550 | mm | |
| Engine Model | LR4B3ZU-G73X3QR-U3 | ||
| Rated power/Speed | 66.2/2400 | Kw/rpm | |
| Travel speed | I-gear(F/R) | 10 | km/h |
| II-gear(F/R) | 28 | km/h | |
