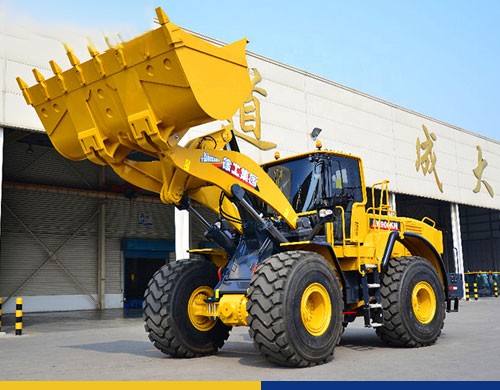

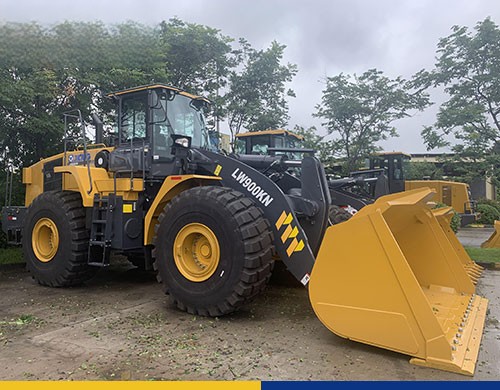

XCMG LW900KN
9Ton Large Wheel Loader
XCMG wheel loader LW900K is the most popular model of China 9t large wheel loader, Now LW900KN is upgrading to new model LW900KV equipped with EURO III engine with electric injector, new model will have high performance.
● Brand Name: XCMG
● Bucket Load: 5.5m³
● Net Power: 261kW
● Rated Load: 9000kg
● Overall Dimension(LxWxH): 9500*3400*3770
● Classification: 9Ton Large Wheel Loader
| Description | Unit | Parameter value |
| Wheel base | mm | 3600 |
| Tread | mm | 2460 |
| Dump clearance at maximum lift | mm | 3400 |
| Reach at maximum lift | mm | 1400 |
| Height of hinge at maximum lift height | mm | 4600 |
| Working height(fully lifted) | mm | 6415 |
| Overall machine dimension L×W×H | mm | 9500×3500×3845 |
| Rated operating load | kg | 9000 |
| Bucket capacity | m³ | 5 |
| Machine weight | kg | 31000 |
| Max.breakout force | kN | 260 |
| Max.horse power | kN | 245 |
| Lifting time of boom | s | ≤6.5 |
| Total cycle time | s | ≤11.5 |
| Minimum turning radius (at tire center) | mm | 6200 |
| Articulation angle | ° | ±38 |
| Gradeability | ° | 25 |
| Tyre size | 29.5R25 | |
| EngineModel | QSM11-C335 | |
| Rated Power/Speed | kW/rpm | 250/2100 |
XCMG Wheel Loader Models
