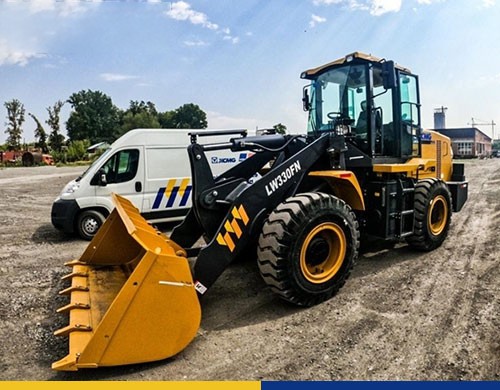

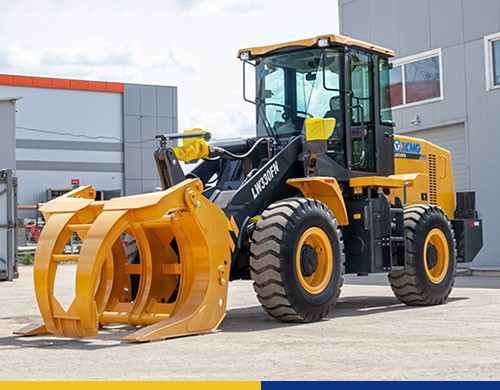

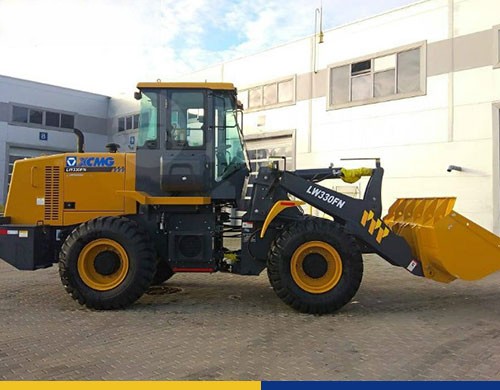

XCMG LW330FN
3Ton Medium Wheel Loader
XCMG LW330FN compact wheel loader is characterized by low energy consumption, low emissions, high efficiency, excellent control comfort, ease of repair, high efficiency, significantly increased mechanical characteristics, significantly reduced vibration and noise levels.
● Brand Name: XCMG
● Bucket Load: 2.1m³
● Net Power: 92kW
● Rated Load: 3300 kg
● Overall Dimension(LxWxH): 7470×2482×3320mm
● Classification: 3Ton Medium Wheel Loader
| Item | Parameters | Unit |
| Rated operating load | 3300 | kg |
| Bucket capacity | 2.1(1.8~2.5) | m3 |
| Machine weight | 10600 | kg |
| Dump clearance at maximum lift (ground to main cutting plate) | 2850 | mm |
| Reach at maximum lift (front wheel to main cutting plate) | 1080 | mm |
| Wheelbase | 2900 | mm |
| Tread | 1850 | mm |
| Hingeaxle height at lifting limit | 3830 | mm |
| Machine height | 3320 | mm |
| Maximum traction force | 95 | kN |
| Hydraulic cycle time-raise | 5.5 | s |
| Total cycling time | 10 | s |
| Minimum turning radius (over tire) | 5170 | mm |
| Articulation angle | ±38 | ° |
| Gradeability | 28 | ° |
| Tire specification | 17.5-25-12PR | |
| Overall dimensions (length x width x height) | 7470*2482*3320 | mm |
| Engine model | WP6G125E22 | |
| Emission standard | China II | |
| Rated power/rotate speed | 92/2200 | kW/rpm |
| Capacity of fuel tank | 185 | L |
| Capacity of hydraulic oil tank | 165 | L |
