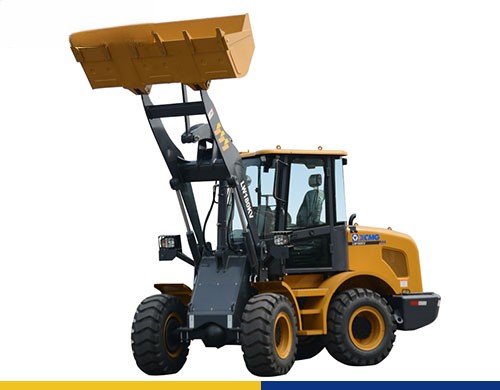

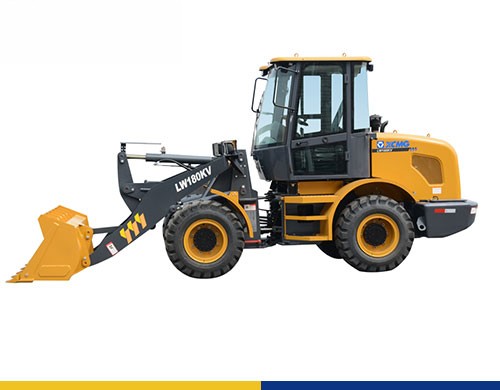

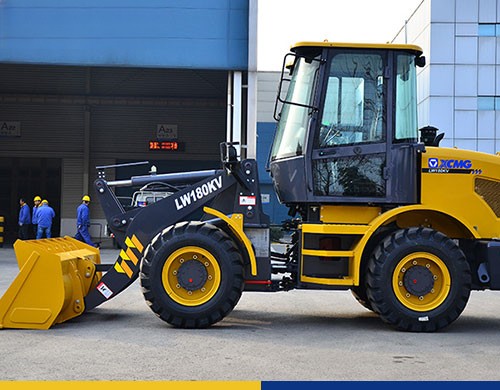

XCMG LW180KV
1.8Ton Mini Wheel Loader
XCMG mini loader LW180KV is a self-propelled earthmoving machine which is hinged in front of the chassis and consists of a moving arm, a connecting rod mechanism and a loading bucket.
● Brand Name: XCMG
● Bucket Load: 1.1m³
● Net Power: 58.8/60kW
● Rated Load: 1800 kg
● Overall Dimension(LxWxH): 6030×2060×2950mm
● Classification: 1.8Ton Mini Wheel Loader
XCMG mini loader LW180KV can be used for shoveling, transporting, unloading and leveling. If the corresponding working device is replaced, it can also be used for bulldozing, lifting, loading and unloading wood and steel pipes.
Specifications
| Item | Parameters | Unit |
| Rated operating load | 1800 | kg |
| Bucket capacity | 0.9-1.1 | m3 |
| Operating weight | 5400 | kg |
| Wheel base | 2200 | mm |
| Lifting time of boom | ≤6.5 | mm |
| Tyre size | 16/17-20 | |
| Model | WP13G | |
| Rated power/speed | 58.8/2100 | kw/rpm |
| Gradeability | 25 | ° |
| Max. breakout force | 55 | kn |
| Max. horse power | 245 | kn |
| Articulation angle | ±38 | ° |
| Total hydraulic cycle time | 10 | s |
| Overall machine dimension L*M*H | 5520*1960*2850 | mm |
