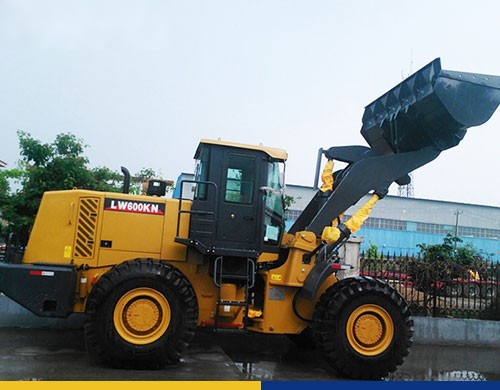

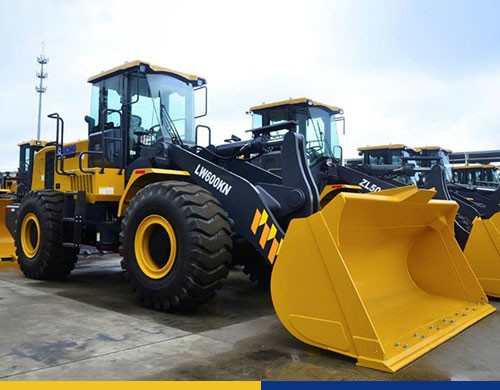

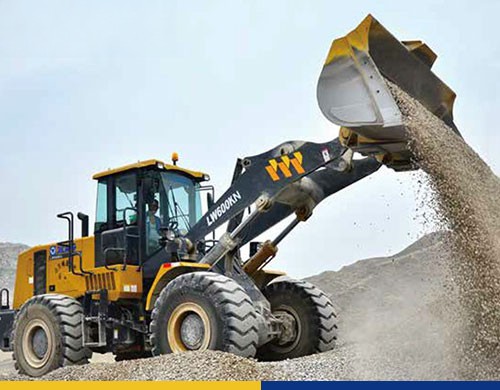

XCMG LW600KN
6Ton Medium Wheel Loader
XCMG bucket loader LW600KN is a preferential machinery product for the production organization in the fields of ports, mines, engineering constructions, and logistics.
● Brand Name: XCMG
● Bucket Load: 3.5m³
● Net Power: 175 / 178 kW
● Rated Load: 6000 kg
● Overall Dimension(LxWxH): 8225x3016x3515mm
● Classification: 6Ton Medium Wheel Loader
XCMG bucket loader LW600KN is rooted in the customers’ needs and based on the international R&D platform to thoroughly improvethe product reliability, economy, comfort, efficiency, maintenance convenience, and adaptability.
Specifications
| Description | Unit | Parameter value |
| Rated operating load | kg | 6000 |
| Bucket capacity | m³ | 3.0～4.5 |
| Machine weight | kg | 20000±300 |
| Dump clearance at maximum lift | mm | 3170～3750 |
| Reach at maximum lift | mm | 1200～1360 |
| Wheel base | mm | 3350 |
| Tread | mm | 2265 |
| Max.breakout force | kN | 205 |
| Max.horse power | kN | 174 |
| Hydraulic cycle time-raise | s | ≤5.9 |
| Total hydraulic cycle time | s | ≤10.9 |
| Min. turning radius over tyres | mm | 6005 |
| Articulation angle | ° | 38 |
| Gradeability | ° | 28 |
| Tyre size | 23.5-25 | |
| Overall machine dimension L×W×H | mm | 8505×3220×3515 |
| Model | SC11CB240.1G2B | |
| Rated Power | kW | 178 |
| Fuel Tank | L | 250 |
| Hydraulic Tank | L | 210 |
| Travel Speed | km/h | 6-34 |
