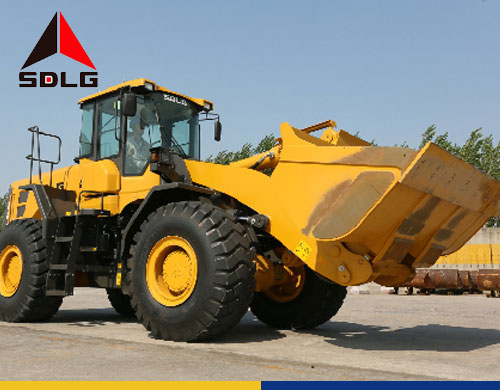

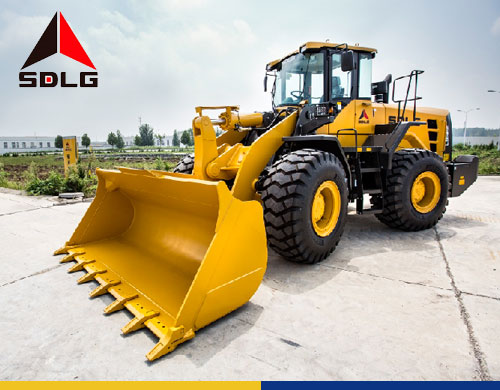

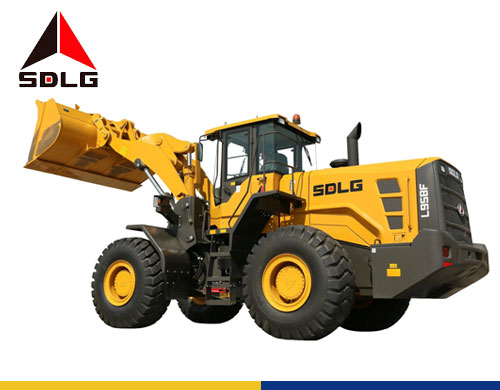

5Ton Wheel Loader SDLG L958F

Front End Wheel Loader

L958F is the long wheelbase, energy-saving and high-end loader launched by SDLG, which has brand new appearance, high-end configuration, good stability and strong durability.

● Brand Name: SDLG

● Engine Model: Weichai WD10G220E21

● Rated power: 162 kW

● Bucket Capacity: 3.2 m³

● Rated Load: 5400 kg

● Operating Weight: 17400 kg

● Classification: Front End Wheel Loader

L958F wheel loader has large breakout force and tipping load, featuring good stability, which is widely used in mining, heavy-load spading, stripping of original soil and other heavy-load conditions.

Specifications

Overall dimension
LWH	828030243410mm
Wheel base	3300mm
Min. ground clearance	420mm
Max. dumping height	3100mm
Dumping distance	1120mm
Dumping angle	45
wheel tread	2190mm
steering angle	40
horizontal crossing radius	6870mm
Min. turning radius	5890mm
Overall parameters
Backet capacity	3.2m3(optional 2.7-4.5)
Rated load	5400kg
operating weight	17130kg
Max. tractive force	160kN
Max. breakout force	175kN
Tipping load	110kN
Engine
Model	WD10G220E21
Type	Inline, watercooled, dry cylinder liner, direct injection
Rated power	162kW
Rated speed	2200r/min
Engine displacement	9726ml
Max. torque	860N.m
Emission standard	GB 20891-2007(China Phase II)
Min. fuel-consume ratio	215g/kw.h
Transmission system
Torgue converter	single-stage three-element single-turbine hydraulic torque converter
Transmission type	Axis-fixed electro-hydraulic transmission
Gears	Forward 4 reverse 4
Hydraulic system of working device
Type	Hydraulic pilot control
total time	10.0s
Brake system
Service brake type	Air over hydraulic disc type
Parking brake type	Electric pneumatic caliper disc type
Steering system
Type	Load sensing full hydraulic articulated steering
System pressure	16 Mpa
Fill capacity
Fuel	300L
Hydraulic oil	240L
Engine	20L
Transmission	28.4L
Drive axle	Forward 30L+ reverse 30L
Braking system	4L
