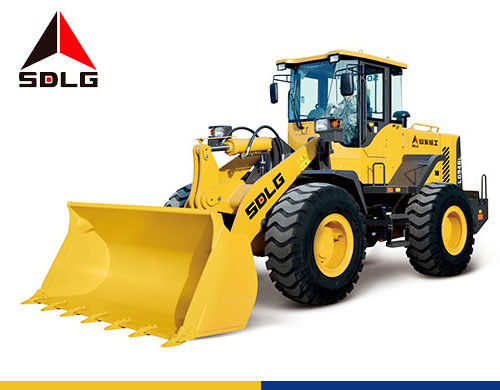

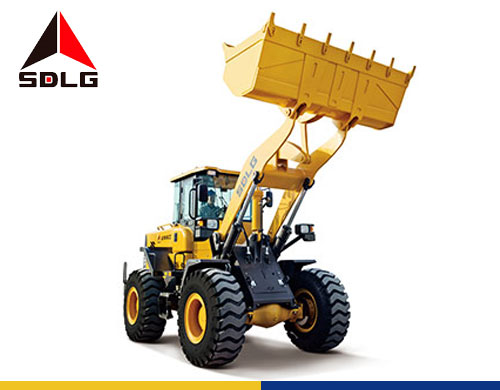

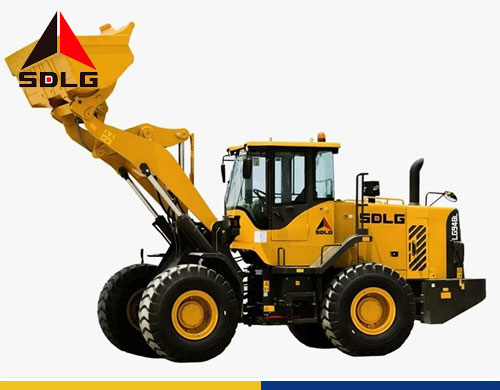

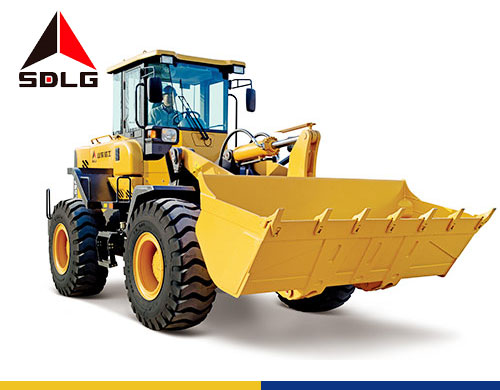

4Ton 2.3m³ Wheel Loader SDLG LG946L
Compact Shovel Wheel Loader
LG946L wheel loaderis a loader for loading and unloading loose materials, with high reliability and high cost performance, and is widely used in farms, small mine plant, timber plant and towns construction and etc.
● Brand Name: SDLG
● Engine Model: Weichai WP6G175E201
● Rated power: 129 kW
● Bucket Capacity: 2.3(2.0-2.5) m³
● Rated Load: 4000 kg
● Operating Weight: 13000 kg
● Classification: Compact Shovel Wheel Loader
| Overall dimension | |
| L*W*H | 7295*2766*3340mm |
| Wheel base | 2880mm |
| Min. ground clearance | 440mm |
| Max. dumping height | 2950mm |
| Dumping distance | 1055mm |
| Dumping angle | 45 |
| wheel tread | 2054mm |
| steering angle | 38 |
| horizontal crossing radius | 6117mm |
| Min. turning radius | 5275mm |
| Overall parameters | |
| Backet capacity | 2.3m3(2.0-2.5) |
| Rated load | 4000kg |
| operating weight | 13000kg |
| Max. tractive force | 120kN |
| Max. breakout force | 125kN |
| Tipping load | 80kN |
| Engine | |
| Model | WP6G175E201 |
| Type | Inline, watercooled, dry cylinder liner, direct injection |
| Rated power | 129kW |
| Rated speed | 2000r/min |
| Engine displacement | 6750ml |
| Max. torque | 680N.m |
| Emission standard | GB 20891-2007(China Phase II) |
| Min. fuel-consume ratio | 220g/kw.h |
| Transmission system | |
| Torgue converter | single-stage four-element double-turbine hydraulic torque converter |
| Transmission type | Planetary power shift |
| Gears | Forward 2 reverse 1 |
| Hydraulic system of working device | |
| Type | Mechanical control |
| total time | 10.2s |
| Brake system | |
| Service brake type | Air over hydraulic disc type |
| Parking brake type | Electric pneumatic internal expansion shoe type |
| Steering system | |
| Type | Load sensing full hydraulic articulated steering |
| System pressure | 14 Mpa |
| Fill capacity | |
| Fuel | 200L |
| Hydraulic oil | 141L |
