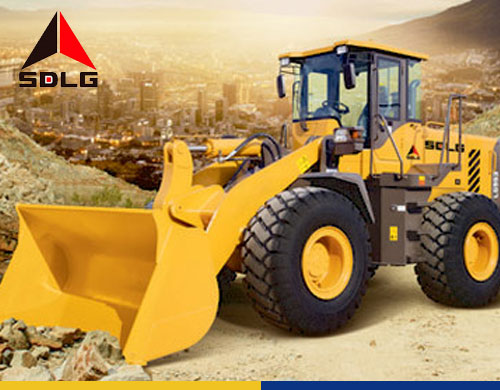

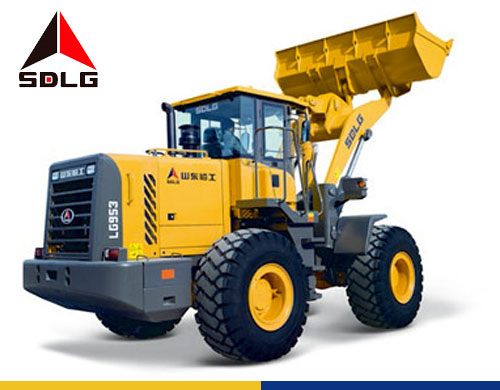

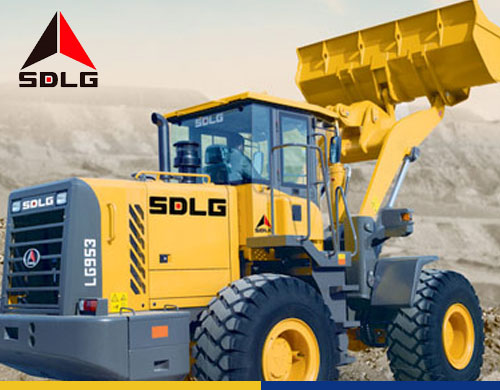

5Ton 2.8m³ Wheel Loader SDLG LG953
Middle-Size Front End Wheel Loader
LG953, a long-wheelbase loader for loading bulk materials and hard materials, features large breakout force and tipping load enjoyed by long-wheelbase loader as well as the flexibility and small turning angle enjoyed by short-wheelbase loader, and is widely applied in areas like sand plants, ports, construction sites, mines etc.
● Brand Name: SDLG
● Engine Model: Weichai WD10G220E21
● Rated power: 162 kW
● Bucket Capacity: 2.8(2.4-4.5) m³
● Rated Load: 5000 kg
● Operating Weight: 16800 kg
● Classification: Middle-Size Front End Wheel Loader
| Overall dimension | |
| L*W*H | 7794*3024*3423mm |
| Wheel base | 2920mm |
| Min. ground clearance | 534mm |
| Max. dumping height | 3040mm |
| Dumping distance | 1160mm |
| Dumping angle | 45 |
| wheel tread | 2250mm |
| steering angle | 35 |
| horizontal crossing radius | 6879mm |
| Min. turning radius | 5904mm |
| Overall parameters | |
| Backet capacity | 2.8m3 |
| Rated load | 5000kg |
| operating weight | 16600kg |
| Max. tractive force | 150kN |
| Max. breakout force | 190kN |
| Tipping load | 100kN |
| Engine | |
| Model | WD10G220E21 |
| Type | Inline, watercooled, dry cylinder liner, direct injection |
| Rated power | 162kW |
| Rated speed | 2200r/min |
| Engine displacement | 9726ml |
| Max. torque | 860N.m |
| Emission standard | GB 20891-2007(China Phase II) |
| Min. fuel-consume ratio | 215g/kw.h |
| Transmission system | |
| Torgue converter | single-stage four-element double-turbine hydraulic torque converter |
| Transmission type | Planetary power shift |
| Gears | Forward 2 reverse 1 |
| Hydraulic system of working device | |
| Type | Mechanical control |
| total time | 9.3s |
| Brake system | |
| Service brake type | Air over hydraulic disc type |
| Parking brake type | Manual, caliper disc type |
| Steering system | |
| Type | Load sensing full hydraulic articulated steering |
| System pressure | 16 Mpa |
| Fill capacity | |
| Fuel | 260L |
| Hydraulic oil | 240L |
| Engine | 20L |
| Transmission | 44L |
| Drive axle | Forward 26L+ reverse 26L |
| Braking system | 4L |
