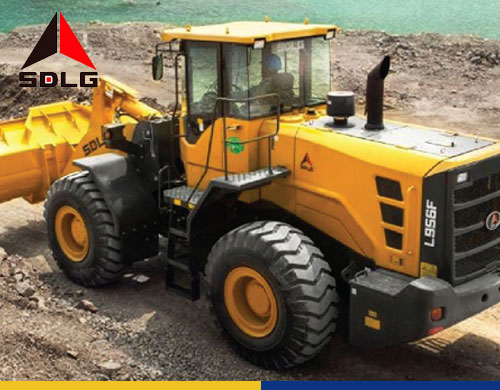

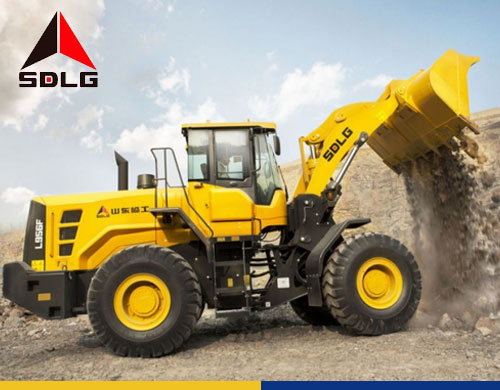

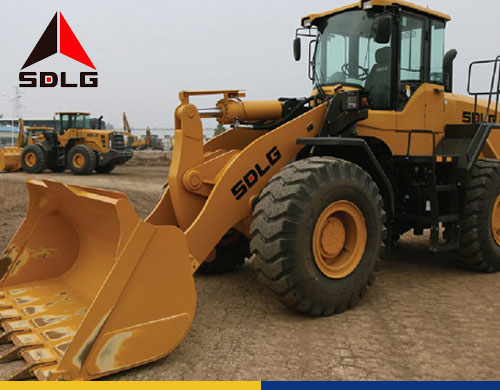

5Ton 3.0m³ Wheel Loader SDLG L956F
Articulated Wheel Loader
The L956F comes with a modern design and many improvements, for a machine that really delivers. With its 2.8 m³ bucket, this loader is engineered for high productivity and will give you an excellent return on your investment.
● Brand Name: SDLG
● Engine Model: Weichai WD10G220E23
● Rated power: 162 kW
● Bucket Capacity: 3.0 m³
● Rated Load: 5000 kg
● Operating Weight: 17450 kg
● Classification: Articulated Wheel Loader
| Overall dimension | |
| L*W*H | 8180*3024*3423mm |
| Wheel base | 3200mm |
| Min. ground clearance | 534mm |
| Max. dumping height | 3040mm |
| Lifting height | 4080mm |
| Dumping distance | 1095mm |
| Dumping angle | 45 |
| wheel tread | 2250mm |
| steering angle | 35 |
| horizontal crossing radius | 7230mm |
| Min. turning radius | 6325mm |
| Overall parameters | |
| Backet capacity | 3.0m3 |
| Rated load | 5000kg |
| operating weight | 17450kg |
| Max. tractive force | 165kN |
| Max. breakout force | 175kN |
| Tipping load | 110kN |
| Engine | |
| Model | WD10G220E23 |
| Type | Inline, watercooled, dry cylinder liner, direct injection |
| Rated power | 162kW |
| Rated speed | 2000r/min |
| Engine displacement | 9726ml |
| Max. torque | 980N.m |
| Emission standard | GB 20891-2007(China Phase II) |
| Min. fuel-consume ratio | 215g/kw.h |
| Transmission system | |
| Torgue converter | single-stage four-element double-turbine hydraulic torque converter |
| Transmission type | Planetary power shift |
| Gears | Forward 2 reverse 1 |
| Hydraulic system of working device | |
| Type | Pilot control |
| total time | 10s |
| Brake system | |
| Service brake type | Air over hydraulic disc type |
| Parking brake type | Electric pneumatic internal expansion shoe type |
| Steering system | |
| Type | Load sensing full hydraulic articulated steering |
| System pressure | 16 Mpa |
| Fill capacity | |
| Fuel | 260L |
| Hydraulic oil | 240L |
| Engine | 20L |
| Transmission | 45L |
| Drive axle | Forward 26L+ reverse 26L |
| Braking system | 4L |
