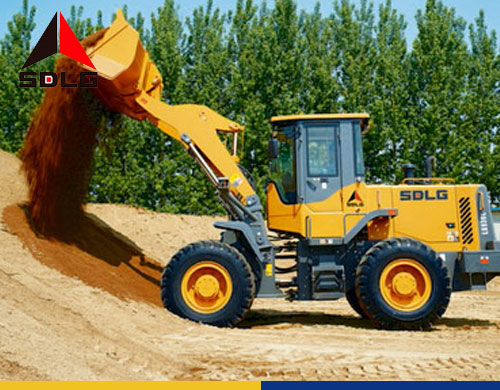

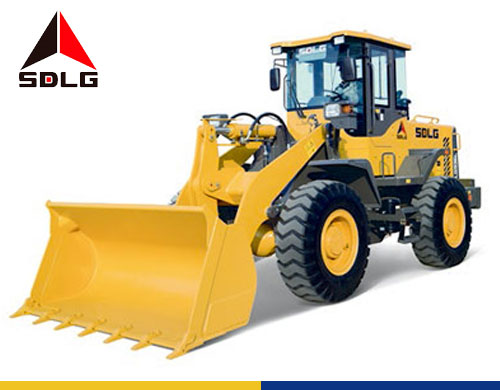

3Ton 1.8m³ Wheel Loader SDLG LG936L
Compact Shovel Wheel Loader
LG936L compact wheel loader is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in farms, small mine plant, timber plant and towns construction and etc.
● Brand Name: SDLG
● Engine Model: Weichai WP6G125E22
● Rated power: 92 kW
● Bucket Capacity: 1.8 m³
● Rated Load: 3000 kg
● Operating Weight: 10400 kg
● Classification: Compact Shovel Wheel Loader
| Overall dimension | |
| L*W*H | 7100*2520*3170mm |
| Wheel base | 2850mm |
| Min. ground clearance | 370mm |
| Max. dumping height | 2950mm |
| Dumping distance | 1050mm |
| Dumping angle | 45 |
| wheel tread | 1865mm |
| steering angle | 37 |
| horizontal crossing radius | 6020mm |
| Min. turning radius | 5381mm |
| Overall parameters | |
| Backet capacity | 1.8m3 |
| Rated load | 3000kg |
| operating weight | 10220kg |
| Max. tractive force | 99kN |
| Max. breakout force | 96kN |
| Tipping load | 66kN |
| Engine | |
| Model | WP6G125E22 |
| Type | Inline, watercooled, dry cylinder liner, direct injection |
| Rated power | 92kW |
| Rated speed | 2200r/min |
| Engine displacement | 6750ml |
| Max. torque | 560N.m |
| Emission standard | GB 20891-2007(China Phase II) |
| Min. fuel-consume ratio | 235g/kw.h |
| Transmission system | |
| Torgue converter | single-stage four-element double-turbine hydraulic torque converter |
| Transmission type | Axis-fixed electro-hydraulic transmission |
| Gears | Forward 4 reverse 3 |
| Hydraulic system of working device | |
| Type | Hydraulic pilot control |
| total time | 8.6s |
| Brake system | |
| Service brake type | Air over hydraulic disc type |
| Parking brake type | Electric pneumatic internal expansion shoe type |
| Steering system | |
| Type | Load sensing full hydraulic articulated steering |
| System pressure | 12 Mpa |
| Fill capacity | |
| Fuel | 140L |
| Hydraulic oil | 128L |
