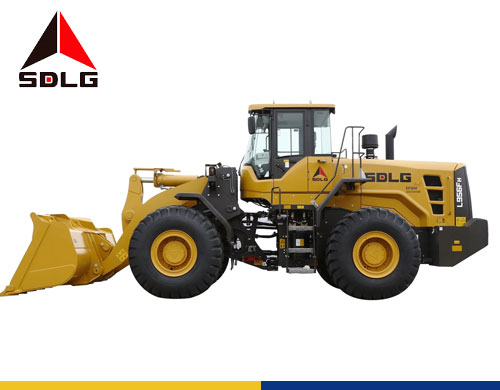

5Ton 3.2m³ Wheel Loader SDLG L956FH
High-End Shovel Loader Wheel Loader
SDLG L956FH wheel loader is a long-wheelbase loader newly designed by SDLG. Adhering to the core concept of "reliable bearing and carring" for the overall machine, comprehensively improve the design and manufacturing level of critical parts, integrating comfort, energy saving and reliability.
● Brand Name: SDLG
● Engine Model: Weichai WD10G220E23
● Rated power: 162 kW
● Bucket Capacity: 3.2 m³
● Rated Load: 5400 kg
● Operating Weight: 17250 kg
● Classification: High-End Shovel Loader Wheel Loader
| Overall dimension | |
| L*W*H | 8280*3024*3380mm |
| Wheel base | 3300mm |
| Min. ground clearance | 420mm |
| Max. dumping height | 3100mm |
| Lifting height | 4170mm |
| Dumping distance | 1120mm |
| Dumping angle | 45 |
| wheel tread | 2190mm |
| steering angle | 38 |
| horizontal crossing radius | 6870mm |
| Min. turning radius | 5890mm |
| Overall parameters | |
| Backet capacity | 3.2m3 |
| Rated load | 5400kg |
| operating weight | 17250kg |
| Max. tractive force | 165kN |
| Max. breakout force | 175kN |
| Tipping load | 110kN |
| Engine | |
| Model | WD10G220E23 |
| Type | Inline, watercooled, dry cylinder liner, direct injection |
| Rated power | 162kW |
| Rated speed | 2000r/min |
| Engine displacement | 9726ml |
| Max. torque | 980N.m |
| Emission standard | GB 20891-2007(China Phase II) |
| Min. fuel-consume ratio | 215g/kw.h |
| Transmission system | |
| Torgue converter | single-stage four-element double-turbine hydraulic torque converter |
| Transmission type | Planetary power shift |
| Gears | Forward 2 reverse 1 |
| Hydraulic system of working device | |
| Type | Pilot control |
| total time | 10s |
| Brake system | |
| Service brake type | Air over hydraulic disc type |
| Parking brake type | Electric pneumatic internal expansion shoe type |
| Steering system | |
| Type | Load sensing full hydraulic articulated steering |
| System pressure | 16 Mpa |
| Fill capacity | |
| Fuel | 300L |
| Hydraulic oil | 240L |
| Engine | 20L |
| Transmission | 45L |
| Drive axle | Forward 30L+ reverse 30L |
| Braking system | 4L |
