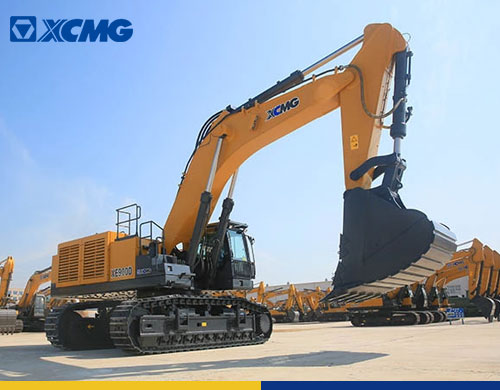

90Ton Crawler Excavator XCMG XE900D
Large Tonnage Crawler Excavator
The XE series of large mining hydraulic excavators bring you an extraordinary driving experience with lean manufacturing, professional design and excellent reliability.
● Brand Name: XCMG
● Engine Model: QSX15
● Engine Power: 399/2100(kW/rpm)
● Bucket Load: 4.1-7m³
● Rated Load: 89600 kg
● Classification: Large Tonnage Crawler Excavator
Moreover, this series of products boast strong excavating power and quick operating speed, making them have matchless operating performance and economic efficiency even in severe mining condition.
Specifications
| Description | Unit | Parameter value | |
| Operating weight | kg | 89600 | |
| Bucket capacity | m³ | 3.5-6.0 | |
| Engine | Model | Engine | QSX15 |
| Output power | kW/ r/min | 399/2100 | |
| torque/speed | N.m | 2539/1400 | |
| Displacement | L | 15 | |
| Main performance | Travel speed(H/L) | km/h | 4.2/2.8 |
| Gradeability | % | 35 | |
| Rotary speed | r/min | 6.3 | |
| Ground pressure | kPa | 120.9 | |
| Bucket digging force | kN | 480 | |
| Arm digging force | kN | 370 | |
| Travel traction force | kN | 656 | |
| Hydraulic system | Main pump | -- | 2 |
| Rated flow of main pump | L/min | 2×549 | |
| Pressure of prime valve | MPa | 31.4/34.3 | |
| Pressure of travel system | MPa | 34.3 | |
| Pressure of swing system | MPa | 24.5 | |
| Pressure of pilot system | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 1230 |
| Hydraulic tank capacity | L | 760 | |
| Engine oil capacity | L | 48 | |
| Appearance size | Overall length | mm | 13570 |
| Overall width | mm | 4545 | |
| Overall height | mm | 5380 | |
| Width of platform | mm | 3370 | |
| Length of crawler | mm | 6350 | |
| Overall width of chassis | mm | 4150 | |
| Width of crawler | mm | 650 | |
| Track length on ground | mm | 5070 | |
| Crawler gauge | mm | 2960/3500 | |
| Clearance under counterweight | mm | 1660 | |
| Min. ground clearance | mm | 850 | |
| Min. tail swing radius | mm | 4700 | |
| Working scope | Max. digging height | mm | 12060 |
| Max. dumping height | mm | 8070 | |
| Max. digging depth | mm | 7250 | |
| Max. digging depth at the range of level 8 feet | mm | 7100 | |
| Max. vertical wall digging depth | mm | 4200 | |
| Max. digging reach | mm | 12330 | |
| Min. swing radius | mm | 5200 | |
