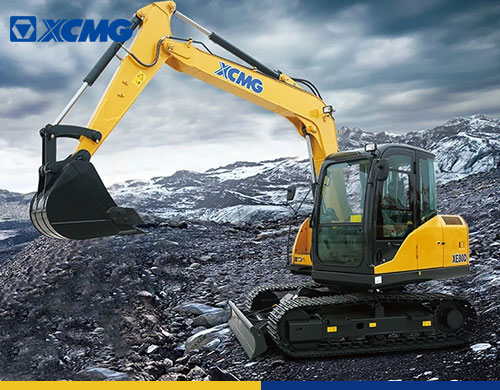

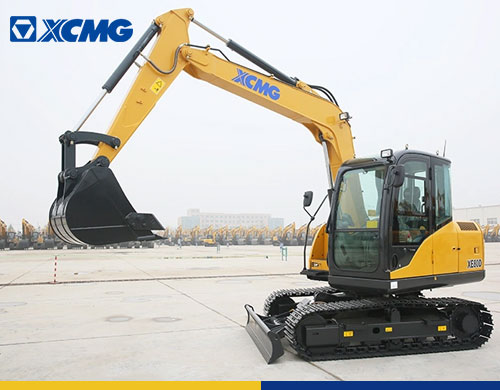

8Ton Crawler Excavator XCMG XE80D

Small/Mini Tonnage Crawler Excavator

XCMG small crawler excavator XE80D use of Yanmar naturally aspirated engine widely used in the industry, with the features of small displacement, low fuel consumption, low-speed and large-torque, is perfectly matched the excavator operation conditions.

● Brand Name: XCMG

● Engine Model: 4TNV98-ZCSXG

● Engine Power: 46.3/2200(kW/rpm)

● Bucket Load: 0.33m³

● Rated Load: 7730 kg

● Classification: Small/Mini Tonnage Crawler Excavator

XCMG small crawler excavator XE80D uses direct injection technology with good oil adaptability.

Specifications

Sales model		Unit	XE80DA
Operating weight		Kg	7730
Bucket capacity		m³	0.33
Engine	Model	/	4TNV98-ZCSXG
	No. of cylinders	/	4
	Output power	kw/rpm	46.3/2200
	Maximum torque/speed	N.m/rpm	239.1/1650
	Displacement	L	3.319
Main performance	Travel speed	km/h	5.0/2.7
	Swing speed	r/min	11
	Gradeability	°	35
	Ground pressure	kPa	34.85
	Bucket digging force	kN	57
	Arm digging force	kN	38
	Maximum traction	kN	68.3
Hydraulic system	Rated flow of main pump	L/min	176
	Main safety valve pressure	MPa	28
	Travel system pressure	MPa	27.4
	Rotary system pressure	MPa	20.6
	Pilot system pressure	MPa	3.5
Oil Capacity	Fuel tank capacity	L	137
	Hydraulic tank capacity	L	82
	Engine oil capacity	L	12
Appearance size	A Overall length	mm	6215
	B Overall width	mm	2280
	C Overall height	mm	2690
	D Width of platform	mm	2260
	F Overall width of chassis	mm	2200
	G Track width	mm	450
	H Length to center of rollers	mm	2195
	I Track gauge	mm	1750
	J Counterweight clearance	mm	800
	K Min. ground clearance	mm	373
Working scope	A Max. digging height	mm	7120
	B Max. dumping height	mm	5160
	C Max. digging depth	mm	4070
	E Max. vertical wall digging depth	mm	3120
	F Max. digging radius	mm	6245
	G Min. swing radius	mm	1800
Standard configuration	Length of boom	mm	3720
	Length of arm	mm	1622
	Bucket capacity	m³	0.33
	Bucket capacity	m³	0.20 Narrow bucket
