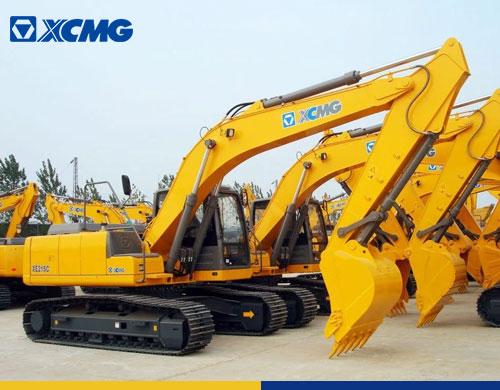

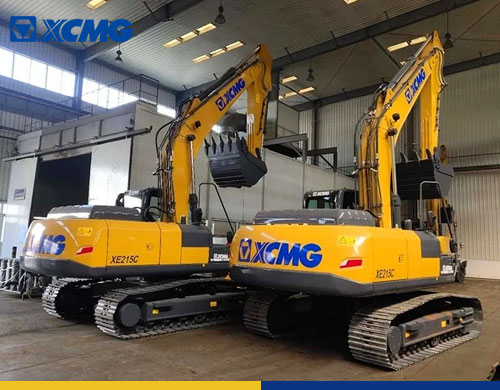

21Ton Crawler Excavator XCMG XE215C
Medium Tonnage Crawler Excavator
XE215C hydraulic excavator has excellent fuel economy,enabling fuel consumption decline by 10%, which greatly reduces operating costs.
● Brand Name: XCMG
● Engine Model: ISUZU CC-6BG1TRP
● Engine Power: 128.5/2100(kW/rpm)
● Bucket Load: 1.0m³
● Rated Load: 21500 kg
● Classification: Medium Tonnage Crawler Excavator

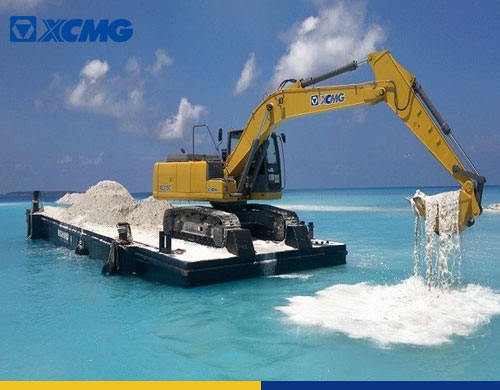

XCMG XE215C excavator is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on.
Specifications
| Engine | Model | ISUZU CC-6BG1TRP |
| Electronic fuel injection | ||
| Four strokes | ||
| Equipped | Water cooling | |
| Turbo-charging | ||
| Air to air intercooler | ||
| No. of cylinders | 6 | |
| Output power | 128.5/2100 kW/rpm | |
| Torque/speed | 637/1800 N.m/rpm | |
| Displacement | 6.494 L | |
| Operation Weight | 21700 kg | |
| Bucket Capacity | 0.9—1.0 m ³ | |
| Main performance | Travel speed(H/L) | 5.5/3.3 km/h |
| Rotating speed | 13.3 r/min | |
| Gradeability | ≤35° | |
| Ground pressure | 47.2 kPa | |
| Bucket digging force | 149 kN | |
| Arm digging force | 111 kN | |
| Maximum traction | 184 kN | |
| Working scope | Max. digging height | 9620 mm |
| Max. dumping height | 6780 mm | |
| Max. digging depth | 6680 mm | |
| Excavation depth of 8 feet level | 6500 mm | |
| Max. vertical wall digging depth | 5715 mm | |
| Max. digging reach | 9940 mm | |
| Min. swing radius | 3530 mm |
