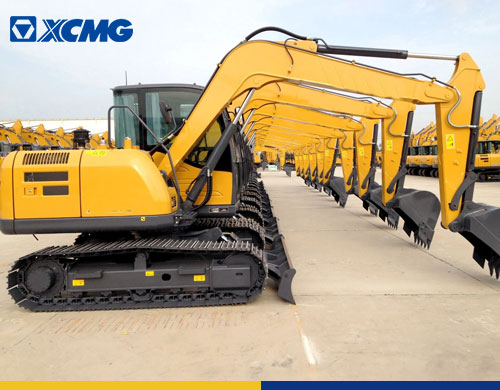

7.5Ton Crawler Excavator XCMG XE75U
Small/Mini Tonnage Crawler Excavator
XCMG's new-generation "U-series" small-sized short-tailexcavatorsare flexible, efficient, reliable and durable. The engine emission meets the European V Standard and is energy-saving and environment-protective.
● Brand Name: XCMG
● Engine Model: Kubota-V2607-CR-TIE4B
● Engine Power: 45/2200(kW/rpm)
● Bucket Load: 0.18～0.3
● Rated Load: 7460 kg
● Classification: Small/Mini Tonnage Crawler Excavator
| Sales model | Unit | XE75U | |
| Operating weight | Kg | 7460 | |
| Bucket capacity | m³ | 0.18～0.3 | |
| Engine | Model | / | V2607-CR-TIE4B |
| No. of cylinders | / | 4 | |
| Rated power | kw/rpm | 45/2200 | |
| Maximum torque/speed | N.m/rpm | 225.8/1400-1800 | |
| Displacement | L | 2.615 | |
| Main performance | Travel speed | km/h | 5.4/2.9 |
| Swing speed | r/min | 10 | |
| Gradeability | ° | ≤35 | |
| Ground pressure | kPa | 33.5 | |
| Bucket digging force | kN | 57 | |
| Arm digging force | kN | 38 | |
| Maximum tractive force | kN | 68.3 | |
| Hydraulic system | Rated flow of main pump | L/min | 176 |
| Main safety valve pressure | MPa | 26.5 | |
| Travel system pressure | MPa | 26.5 | |
| Swing system pressure | MPa | 18.6 | |
| Pilot system pressure | MPa | 3.5 | |
| Oil Capacity | Fuel tank capacity | L | 130 |
| Hydraulic tank capacity | L | 76 | |
| Engine oil capacity | L | 10 | |
| Appearance size | A Overall length | mm | 6150 |
| B Overall width | mm | 2230 | |
| C Overall height | mm | 2685 | |
| D Width of platform | mm | 2070 | |
| E Track length | mm | 2825 | |
| F Overall width of chassis | mm | 2200 | |
| G Track width | mm | 450 | |
| H Wheel base of crawler | mm | 2195 | |
| I Track gauge | mm | 1750 | |
| J Counterweight clearance | mm | 795 | |
| K Min. ground clearance | mm | 380 | |
| L Min. tail swing radius | mm | 1800 | |
| M Track height | mm | 644 | |
| Working scope | A Max. digging height | mm | 7085 |
| B Max. dumping height | mm | 5160 | |
| C Max. digging depth | mm | 4015 | |
| E Max. vertical wall digging depth | mm | 2916 | |
| F Max. digging radius | mm | 6240 | |
| G Min. swing radius | mm | 1820 | |
| Standard | Length of boom | mm | 3720 |
| Length of arm | mm | 1622 | |
| Bucket capacity | m³ | 0.3 | |
| Optional | Length of boom | m³ | - |
| Bucket capacity | m³ | 0.18(Earthwork bucket) | |
