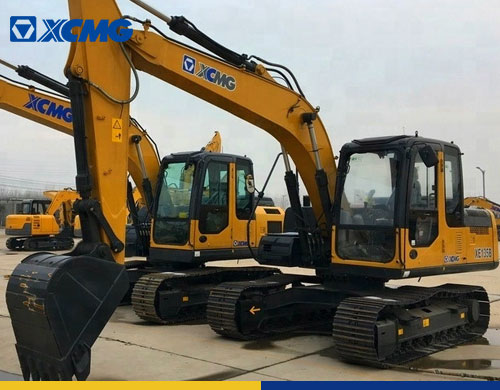

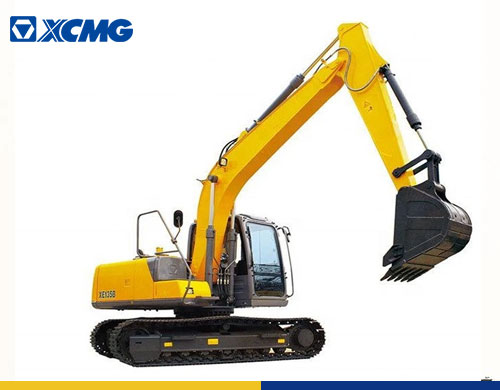

13Ton Crawler Excavator XCMG XE135B
Medium Tonnage Crawler Excavator
XE135B is a small excavator which is comprehensively upgraded and is applicable for a variety of working conditions. The product integrates energy saving, reliability and comfort, features flexible operation and low noise, and is widely used in mines, construction site, underground mining, landscape engineering, municipal construction.
● Brand Name: XCMG
● Engine Model: ISUZU BB-4BG1TRP
● Engine Power: 72.7/2200(kW/rpm)
● Bucket Load: 0.4-0.52m³
● Rated Load: 13000 kg
● Classification: Medium Tonnage Crawler Excavator
| Description | Unit | Parameter value | |
| Operating weight | Kg | 13000 | |
| Bucket capacity | m³ | 0.4-0.52 | |
| Engine | Model | / | ISUZU BB-4BG1TRP |
| No. of cylinders | / | 4 | |
| Output power | kw/rpm | 72.7/2200 | |
| torque/speed | N.m | 337.6/1600 | |
| Displacement | L | 4.329 | |
| Main performance | Travel speed（H/L) | km/h | 5.16/3.03 |
| Rotating speed | r/min | 12.3 | |
| Gradeability | ° | ≤35 | |
| Ground pressure | kPa | 42 | |
| Bucket digging force | kN | 85 | |
| Arm crowd force | kN | 65 | |
| Maximum traction | kN | 134 | |
| Hydraulic system | Main pump | / | 2 |
| Rated flow of main pump | L/min | 2×123 | |
| Pressure of prime valve | MPa | 31.4/34.3 | |
| Pressure of travel system | MPa | 34.3 | |
| Pressure of swing system | MPa | 25 | |
| Pressure of pilot system | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 250 |
| Hydraulic tank capacity | L | 130 | |
| Engine oil capacity | L | 14 | |
| Appearance size | Overall length | mm | 7770 |
| Overall width | mm | 2512 | |
| Overall height | mm | 2880 | |
| Width of platform | mm | 2512 | |
| Length of crawler | mm | 3660 | |
| Overall width of chassis | mm | 2490 | |
| Width of crawler | mm | 500 | |
| Track length on ground | mm | 2910 | |
| Crawler gauge | mm | 1990 | |
| Clearance under counterweight | mm | 964 | |
| Min. ground clearance | mm | 478 | |
| Min. tail swing radius | mm | 1805 | |
| Working scope | Max. digging height | mm | 8641 |
| Max. dumping height | mm | 6181 | |
| Max. digging depth | mm | 5538 | |
| Max. vertical wall digging depth | mm | 4727 | |
| Max. digging reach | mm | 8296 | |
| Min. swing radius | mm | 2335 | |
