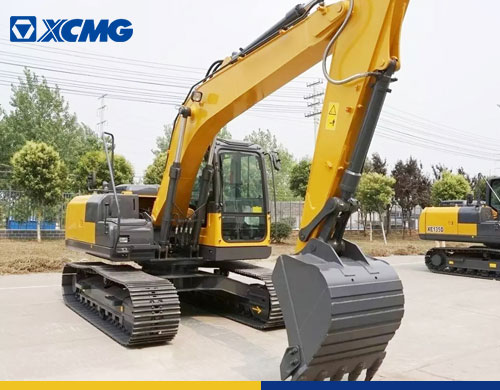

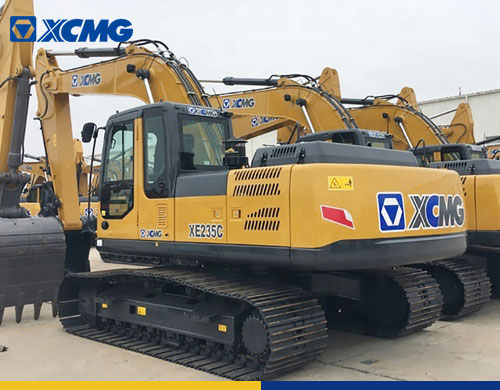

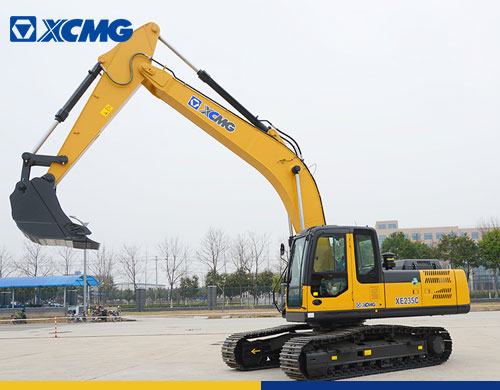

23Ton Crawler Excavator XCMG XE235C
Medium Tonnage Crawler Excavator
XE235C hydraulic excavator is a new product developed by XCMG Group which is widely developed by adopting the latest technology and adopting the advanced technology of similar foreign products.
● Brand Name: XCMG
● Engine Model: Isuzu CC-6BG1TRP-08
● Engine Power: 128.5/2100(kW/rpm)
● Bucket Load: 1.0-1.1m³
● Rated Load: 23500 kg
● Classification: Medium Tonnage Crawler Excavator
| XE235C | Unit | Parameter value | ||
| Operating weight | kg | 23500 | ||
| Bucket capacity | m³ | 1.0~1.1 | ||
| Engine | Model | Engine | CC-6BG1TRP | |
| Style | Direct injection | --- | √ | |
| Four strokes | --- | √ | ||
| Water cooling | --- | √ | ||
| Turbo-charging | --- | √ | ||
| Air to air intercooler | --- | √ | ||
| No. of cylinders | --- | 6 | ||
| Output power | kW/ r/min | 128.5/2100 | ||
| torque/speed | N.m | 637/1800 | ||
| Displacement | L | 6.494 | ||
| Main performance | Travel speed(H/L) | km/h | 6.0/4.0 | |
| Rotating speed | r/min | ≤35 | ||
| Gradeability | ° | 12.1 | ||
| Ground pressure | kPa | 48.9 | ||
| Bucket digging force | kN | 176 | ||
| Arm digging force | kN | 125 | ||
| Maximum traction | kN | 194.8 | ||
| Hydraulic system | Main pump | -- | 2 | |
| Rated flow of main pump | L/min | 2×246 | ||
| Pressure of prime valve | MPa | 34.3/37 | ||
| Pressure of travel system | MPa | 34.3 | ||
| Pressure of swing system | MPa | 25 | ||
| Pressure of pilot system | MPa | 3.9 | ||
| Oil Capacity | Fuel tank capacity | L | 400 | |
| Hydraulic tank capacity | L | 240 | ||
| Engine oil capacity | L | 25 | ||
| Appearance size | Overall length | mm | 10160 | |
| Overall width | mm | 2990 | ||
| Overall height | mm | 3100 | ||
| Width of platform | mm | 2830 | ||
| Length of crawler | mm | 4255 | ||
| Overall width of chassis | mm | 2990 | ||
| Width of crawler | mm | 600 | ||
| Wheel base of crawler | mm | 3462 | ||
| Crawler gauge | mm | 2390 | ||
| Clearance under counterweight | mm | 1050 | ||
| Min. ground clearance | mm | 485 | ||
| Min. tail swing radius | mm | 2985 | ||
| Working scope | Max. digging height | mm | 9595 | |
| Max. dumping height | mm | 6725 | ||
| Max. digging depth | mm | 6960 | ||
| Max. digging depth at the range of level 8 feet | mm | 6750 | ||
| Max. vertical wall digging depth | mm | 6090 | ||
| Max. digging reach | mm | 10240 | ||
| Min. swing radius | mm | 3850 | ||
